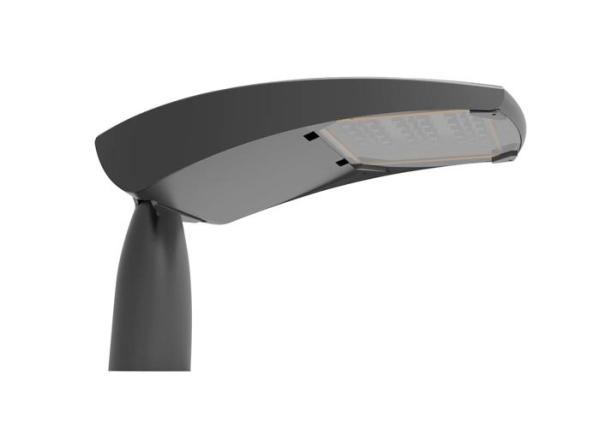

High Efficiency Led Street Light Fixture / IP65 Led Roadway Luminaire
High Efficiency Led Street Light Fixture / IP65 Led Roadway Luminaire
Specifications
Brand Name :
Amtruth or OEM
Model Number :
BDSL201
Certification :
CE & RoHS
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
1pc sample welcome
Price :
Negotiable
Payment Terms :
L/C, T/T, other terms negotiable
Supply Ability :
30000pcs/month
Delivery Time :
5-30 days upon order Qty
Packaging Details :
1pc/ctn
Power :
50-80w
Material :
Die-cast Aluminum alloy
Housing color :
Silver grey/black, other color upon request
CRI (Ra>） :
70
IP Rating :
IP65
Description

Aluminum Housing IP65 Outdoor 60w/70w Energy Saving Led Street Light

Description:

High quality cast aluminum body, with its attachment pole mount.

It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.

4mm thick clear glass.

Powder coating.

Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.

Choice of various types of optical road more suited to the requirements.

Power drivers standard, on request you can also install dimmable driver.

Applications:

These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.

Specifications:

Name LED Street Light
Model No. BDSL201 BDSL202 BDSL203
Light source SMD
Chip 3030
Warranty 5 years
Power(W) 60/70 100/120 180/200
Voltage AC85-265V 50-60Hz
Surge protection 4KV/6KV/10KV
Driver efficiency >90%
Power factor 0.9
Luminous flux(lm) 7800/9100 13000/15600 23400/26000
Luminous efficacy(lm/w) 130 130 130
CRI >70
Color temperature 3000k/4000k/5700k
LED quantity(PCS) 144 192 320
Beam angle 150°*75°
Housing material Die-cast Aluminum Alloy
Lens material PC
Ambient temperature -40℃~50℃
Working temperature <60°
Storage temperature -40℃~50℃
IP Rating IP65
IK Rating IK08
Installation Φ60-Φ76mm

Light Distribution Curve:

High Efficiency Led Street Light Fixture / IP65 Led Roadway Luminaire
