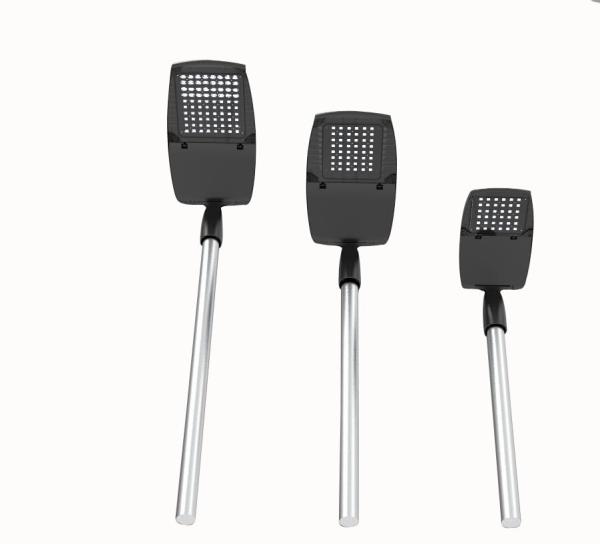

Outdoor 200w Waterproof Led Street Lights Energy Savings CE RoHS Certified
Outdoor 200w Waterproof Led Street Lights Energy Savings CE RoHS Certified
Outdoor 200w Waterproof Led Street Lights Energy Savings CE RoHS Certified
Outdoor 200w Waterproof Led Street Lights Energy Savings CE RoHS Certified
Specifications
Brand Name :
Amtruth or OEM
Model Number :
BDSL301
Certification :
CE & RoHS
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
1pc sample welcome
Price :
Negotiable
Payment Terms :
L/C, T/T, other terms negotiable
Supply Ability :
30000pcs/month
Delivery Time :
5-30 days upon order Qty
Packaging Details :
1pc/ctn
Power :
180-200w
CRI (Ra>） :
70
Working Temp.(℃） :
-40-+55
Light Efficiency :
>120lm/w
Life Span :
>50000H
LED Qty :
320pcs
Description

Aluminum Housing IP65 IK08 Outdoor CE RoHS Certified 180w/200w LED Street Light Housing

Description:

High quality cast aluminum body, with its attachment pole mount.

It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.

4mm thick clear glass.

Powder coating.

Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.

Choice of various types of optical road more suited to the requirements.

Power drivers standard, on request you can also install dimmable driver.

Applications:

These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.

Specifications:

High Efficacy LED Source

BDSL301 series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of chips is more than 130 lm/w.

Outdoor 200w Waterproof Led Street Lights Energy Savings CE RoHS Certified

High-end LED Driver

High-end MeanWell HLG Series Flicker free LED driver Optimal stabilityperformance and lifespan.

Outdoor 200w Waterproof Led Street Lights Energy Savings CE RoHS Certified

Variety Light Distribution

BDSL301 series provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.

Outdoor 200w Waterproof Led Street Lights Energy Savings CE RoHS Certified

General

Information

 Name LED Street Light
Model No. BDSL301
Light source SMD
Chip 3030 / 3535 / 5050
Warranty 5 years
Electrical Information Power(W) 180/200
Voltage AC100-277V 50-60Hz
Surge protection 4KV/6KV/10KV
Driver efficiency >90%
Power factor 0.9
Optical Information Luminous flux(lm) 23400/26000
Luminous efficacy(lm/w) 130
CRI >70
Color temperature 3000k/4000k/5700k
LED quantity(PCS) 320
Beam angle 150°*75°
Mechanical Information Housing material Die-cast Aluminum Alloy
Lens material PC
Ambient temperature -40℃~50℃
Working temperature <60°
Storage temperature -40℃~50℃
IP Rating IP65
IK Rating IK08
Installation Φ60-Φ76mm

Installation information of LED Street Light:

1. Check all the parts and accessories of LED street lights;

2. Must cut off the power supply before installation;

3. Make sure LED street light is fixed tightly to the surface of place for installation;

4. Connect the power line of light with power supply, then switch on the power;

5. When it is working, it must be kept vertical downwar
