60 Watt Led Street Light Fixture / 220v Led Site Lighting Fixtures 50-60 Hz
60 Watt Led Street Light Fixture / 220v Led Site Lighting Fixtures 50-60 Hz
60 Watt Led Street Light Fixture / 220v Led Site Lighting Fixtures 50-60 Hz
60 Watt Led Street Light Fixture / 220v Led Site Lighting Fixtures 50-60 Hz
60 Watt Led Street Light Fixture / 220v Led Site Lighting Fixtures 50-60 Hz
60 Watt Led Street Light Fixture / 220v Led Site Lighting Fixtures 50-60 Hz
Specifications
Brand Name :
Amtruth or OEM
Model Number :
BDSL201
Certification :
CE & RoHS
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
1pc sample welcome
Price :
Negotiable
Payment Terms :
L/C, T/T, other terms negotiable
Supply Ability :
30000pcs/month
Delivery Time :
5-30 days upon order Qty
Packaging Details :
1pc/ctn
Power :
50-80w
Material :
Die-cast Aluminum alloy
Housing color :
Silver grey/black, other color upon request
CRI (Ra>） :
70
IP Rating :
IP65
Description

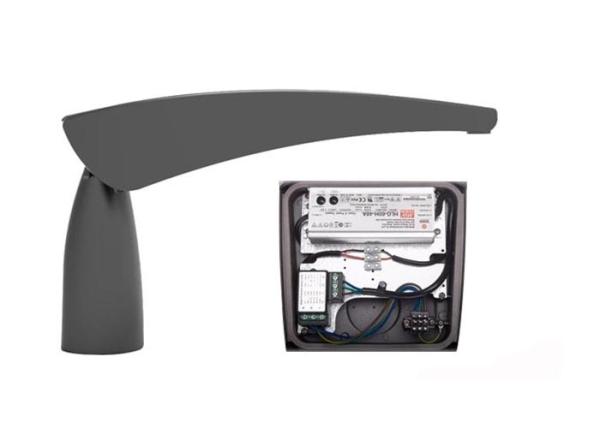

Aluminum Housing IP65 Outdoor 60w/70w Energy Saving Led Street Light

Description:

High quality cast aluminum body, with its attachment pole mount.

It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.

4mm thick clear glass.

Powder coating.

Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.

Choice of various types of optical road more suited to the requirements.

Power drivers standard, on request you can also install dimmable driver.

Applications:

These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.

Specifications:

Name LED Street Light
Model No. BDSL201 BDSL202 BDSL203
Light source SMD
Chip 3030
Warranty 5 years
Power(W) 60/70 100/120 180/200
Voltage AC85-265V 50-60Hz
Surge protection 4KV/6KV/10KV
Driver efficiency >90%
Power factor 0.9
Luminous flux(lm) 7800/9100 13000/15600 23400/26000
Luminous efficacy(lm/w) 130 130 130
CRI >70
Color temperature 3000k/4000k/5700k
LED quantity(PCS) 144 192 320
Beam angle 150°*75°
Housing material Die-cast Aluminum Alloy
Lens material PC
Ambient temperature -40℃~50℃
Working temperature <60°
Storage temperature -40℃~50℃
IP Rating IP65
IK Rating IK08
Installation Φ60-Φ76mm

Light Distribution Curve:

60 Watt Led Street Light Fixture / 220v Led Site Lighting Fixtures 50-60 Hz

Notice:

Dear Friend,The quality for LED product is very important,compare with other store carefully about the quality in detail,such as the heat dissipation,LED chips,

so that no trouble in your future business.some products can not know the quality after only using 2-3 months,but after this periods,fast lumen depreciation,

light flicker,rusting,light spot and so on.Don't say that the price is more expensive than other stores,you buy the best quality products,

can use for several years,but buy the bad quality products,only few months and bring you more troubles and lose money in your business and future.
