EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
None
Model Number :
R1QL1-120-150N
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
35 working days
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Product name :
Auto motor winding machine
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Color :
According to customer requirement
Type :
Fully Automatic
Application :
Automobile car motor stator coil winding
Description

EV Car New Energy Motor Automatic Coil Winding And Inserting Machine

1. EV Car New Energy Motor Coil Winder Features and Functions

The EV Car New Energy Motor coil winding and inserting station is controlled by the dual-power servo motor, and the parameters such as winding, pushing the line, pushing the height of the paper, and changing the product stack thickness can be set on the touch screen.The EV Car New Energy Motor machine has one automatic motor coil winding stations and one stator coil inserting station. During winding, the motor stator copper wire will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.With automated coil winding and insertion wokring automatic combination, the stator coil winding and inserting machine will be save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding.

2. EV Car New Energy Motor Coil Winder Technical parameters

Product name : EV Car New Energy Motor stator coil winding and inserting machine
Stack Height: 30-120mm
Appropriate Wire: φ0.2-φ1.2mm
Stator OD: ≤φ150mm
Stator ID: 40-110mm
Motor Winding stations: 1
Stator Coil inserting stations: 1
Winding inserting mode: chained /same core
Power supply: 380V 50/60Hz
Air pressure: 0.6-0.8 MPa
Watt : 5Kw
Weight : ≈2200Kg
Dimension: (L)2200×(W)1500×(H)2200mm

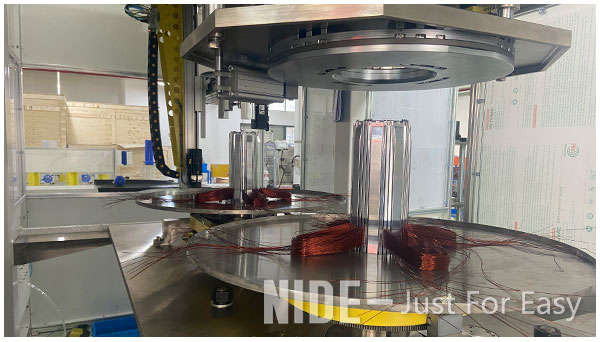

2. EV Car New Energy Motor Coil Winder Picture

EV Car New Energy Motor Automatic Coil Winding And Inserting Machine

EV Car New Energy Motor Automatic Coil Winding And Inserting Machine
