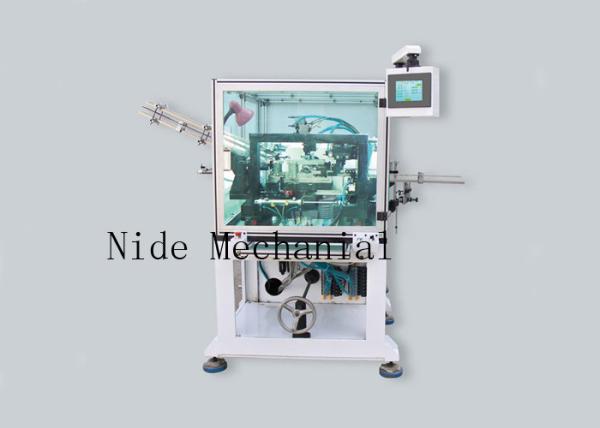

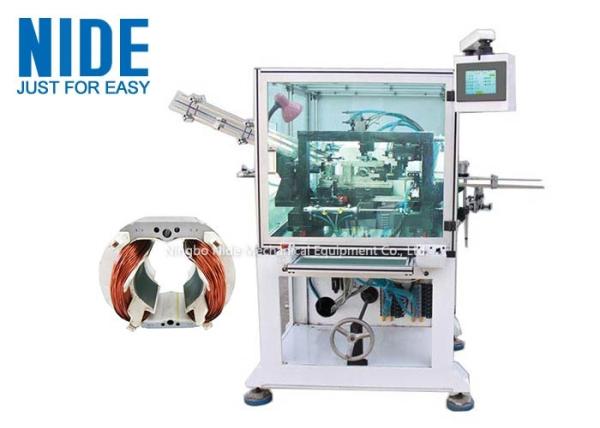

Full Automatic Stator needle Winding Machine / Aluminum , Copper Wire Winding Machine
Full Automatic Stator needle Winding Machine / Aluminum , Copper Wire Winding Machine
Full Automatic Stator needle Winding Machine / Aluminum , Copper Wire Winding Machine
Full Automatic Stator needle Winding Machine / Aluminum , Copper Wire Winding Machine
Full Automatic Stator needle Winding Machine / Aluminum , Copper Wire Winding Machine
Full Automatic Stator needle Winding Machine / Aluminum , Copper Wire Winding Machine
Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
None
Model Number :
ND-S2PB
MOQ :
1set
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
35 days
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Machine size :
Middle size
Automation type :
fully automatic
Certificate :
CCC
After-Sales Service :
Overseas Service Center Available
Condition :
New
Customized service :
Available
Description

Full Automatic Stator needle Winding Machine / Aluminum , Copper Wire Winding Machine

Quick Detail:

1. This machine is easy to operate, only need to load and unload stator.
2. This machine is suitable for multi-pole stator.
3. This machine can automatically winding and cutting.

Description:

Fully automatic multi pole stator winding machine is used to winding stator. Automatic winding, indexing and wire cutting, only load and unload stator by manually. High efficiency, stable performance and reasonable price, help you reduce cost while remain high quality.

Required material for recommending suitable machine model:

Stator drawing, winding diagram including wire diameter and turn number.

Main technical data:

Stator O.D

50~130mm

Wire diameter

0.15~1.3mm

Stator stack length

10~70mmm

Turn number

0~99999

Slot number

2 poles

Air pressure

5~7Kg/cm2

Total power

2KW

Voltage

AC380V,50/60Hz

Weight

1200Kgs

Dimension

1500*2100*1650mm

Information needed for Automatic Stator Coil Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3.Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.
