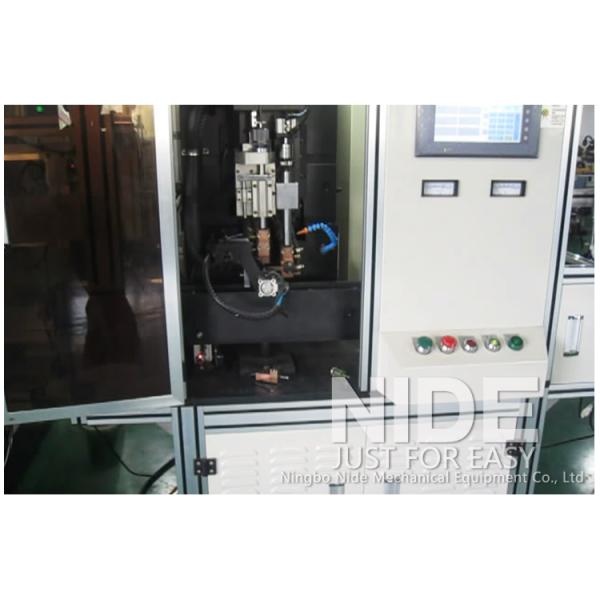

PCL Controlled Automatic Commutator Fusing Machine for DC and AC motor
PCL Controlled Automatic Commutator Fusing Machine for DC and AC motor
PCL Controlled Automatic Commutator Fusing Machine for DC and AC motor
PCL Controlled Automatic Commutator Fusing Machine for DC and AC motor
PCL Controlled Automatic Commutator Fusing Machine for DC and AC motor
PCL Controlled Automatic Commutator Fusing Machine for DC and AC motor
Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
None
Model Number :
ND-LWD
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
35 working days
Payment Terms :
T/T, L/C
Supply Ability :
50 sets per month
condition :
new
color :
customized
Commutator OD :
15-40mm
controlled :
PLC
used for :
DC motor and AC motor
Shaft OD :
5mm- 15mm
Description

PCL Controlled Automatic Commutator Fusing Machine for DC and AC motor

Quick Detail:

1. Model No.: ND-LWD
2. Commutator OD ranges from15~40mm
3. This machine is controlled by PLC.
4. It has colorful touch screen, and data setting can be done on the touch sreeen.
5. This machine is applied to DC motor and AC motor.

Description:

This PCL Controlled Automatic Commutator Fusing Machine is applied to DC motor and AC motor. It is controlled by PCL, all the data setting can be done on the touch sreeen. This machine can automatically fuse, and operator only need to load and unload rotor.

Application:

This machine is applied to DC motor and DC motor, which meet the below specificatioon.


Specification:

Wire diameter 0.1mm-0.8mm
Armature OD 20mm- 70mm
Shaft OD 5mm- 15mm
Commutator O.D 15mm- 40mm
Commutator hook number/slot 4hooks≤odd number hook ≤36hooks
Machine power supply three phase AC 380±10% 50HZ 40KW
Air source 4kg/cm2—6kg/cm2
Machine weight 800kg
Machine dimension 1000mmx950mmx1800mm
Production capacity ≥1200pcs/shift(16slot 32hook armature)
Competitive advantages:

This machine is easy for operation. It’s helpful for customer to reduce labor cost and improve production efficiency.

PCL Controlled Automatic Commutator Fusing Machine for DC and AC motor

PCL Controlled Automatic Commutator Fusing Machine for DC and AC motor
