AC Servo Small Wire Winding Machine , Automatic Winding Machine For Dc Motor / Ac Motor
AC Servo Small Wire Winding Machine , Automatic Winding Machine For Dc Motor / Ac Motor
AC Servo Small Wire Winding Machine , Automatic Winding Machine For Dc Motor / Ac Motor
AC Servo Small Wire Winding Machine , Automatic Winding Machine For Dc Motor / Ac Motor
Specifications
Place of Origin :
China
Brand Name :
Nide
Model Number :
ND-LAW-2D
MOQ :
1 set
Payment Terms :
TT/ LC
Certification :
None
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
45 working days
Supply Ability :
100 sets per month
Customized service :
Available
Machine size :
Middle size
Certificate :
CCC
Automation type :
Fully automatic
Working station :
Single working station
After-Sales Service :
Overseas Service Center Available
HS code :
8479811000
Description

AC Servo Small Wire Winding Machine , Automatic Winding Machine For Dc Motor / Ac Motor

Quick Detail:

1. This armature winding machine is suitable for samll wire armature.
2. The armature winding mahcine can automatically wind armature.
3. The armature winding Machine is controlled by Mitsubishi PLC.
4. This armature winding machine is easy for operation.

Description:

LAW-2 series automatic AC servo armature winding machine adopts international advanced technology that use AC servo for winding and indexing. Also, this series of armature winding machine uses colorful LCD which is easy for users to change the parameter, and improve the efficiency largely. It is suitable for small wire diamter winding. It is a good choice for motor manufacturer.



Techinical parameter:

Item

Specification

Wire diameter

0.08~0.30mm (Mechanical type)

0.16~0.55mm (Hysteresis)

Winding slots

Odd/even number

Commutator diameter

8~40mm

Armature diameter

20~60mm

Armature stack length

10~60mm

Winding motor speed

0~3000 rpm

Control system

Mitsubishi PLC control

Air supply pressure

5~7 Kg/cm2

Voltage

AC220V 50/60Hz

Weight

500Kg

Dimension

1800(length)X800(width)X1500(height)mm

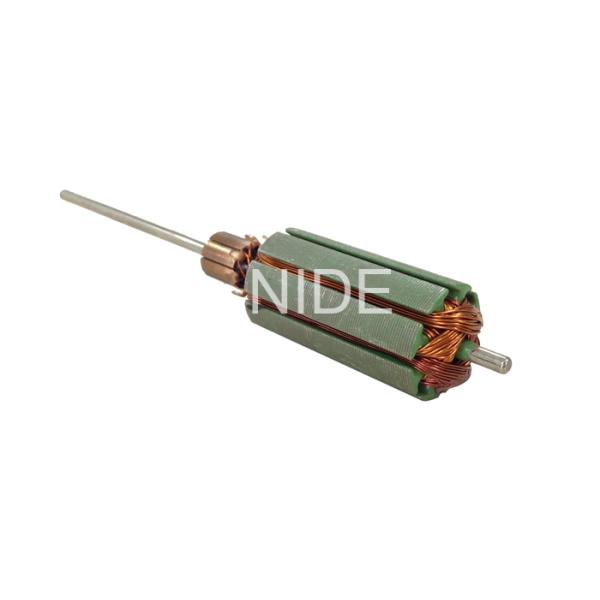

Armatur wound by this machine

AC Servo Small Wire Winding Machine , Automatic Winding Machine For Dc Motor / Ac Motor

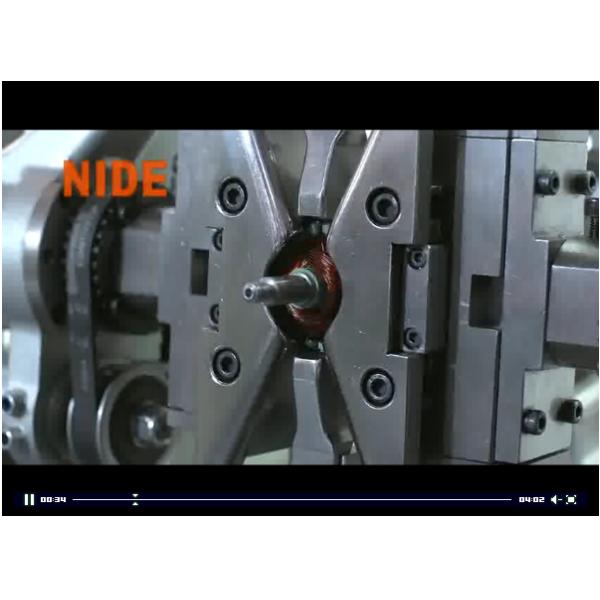

Video link:

AC Servo Small Wire Winding Machine , Automatic Winding Machine For Dc Motor / Ac Motor
