BLDC fan motor stator automatic needle winding Machine
BLDC fan motor stator automatic needle winding Machine
BLDC fan motor stator automatic needle winding Machine
BLDC fan motor stator automatic needle winding Machine
BLDC fan motor stator automatic needle winding Machine
BLDC fan motor stator automatic needle winding Machine
Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
None
Model Number :
NXN1-100/150C
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
60 working days
Payment Terms :
T/T, L/C
Supply Ability :
600 sets per year
NAME :
BLDC stator needle winding machine
color :
customized
condition :
new
Description

BLDC motor stator automatic needle winding Machine

Quick detail

1.The bldc winding machine equips with servo system.

2. The automatic needle winding machine will automatically do winding process.

3. The BLDC stator coil needle winding machine is easy to operate.

4. The winding parameter can be set in touch screen.

Description

This stator coil inslot needle winding machine is suitable for winding BLDC stator. It equips with servo system. It can automatically intert wire end, winding, arraying, indexing, cutting, demolding. It can diagnose fault, count output, etc. Other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed in the touch screen. This bldc winding machine is easy to operate and maintain.

Technical parameter

Product name NXN1-100/150 BLDC stator needle winding machine
Suitable OD ≤150mm
Suitable ID ≥25mm
Suitable thichness 10~100mm
Suitable wire diameter 0.3-1.0mm
Power supply 220V/ 50/60Hz
Weigth 600Kg
Deminsion 1400*900*2000mm

Application:

This needle winding machine is suitable for winding fan motor and BLDC stator.

Operating procedures
1. Power on the BLDC winding machine
2. Thread the wire
3. Put stator to the working station table
4. Adjust the tooling according to different model stator
5. Set the stator diameter in the touch screen then select the pre-set data.
6. Press "start" button.
7. The needle winding Machine will automatically do winding.
8. Take out the stator

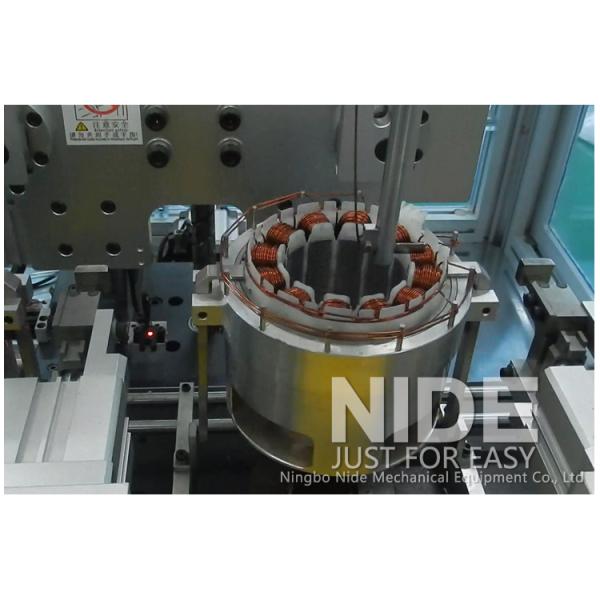

The BLDC stator winding machine picture show

BLDC fan motor stator automatic needle winding Machine

The bldc needle winding machine picture display

BLDC fan motor stator automatic needle winding MachineBLDC fan motor stator automatic needle winding MachineBLDC fan motor stator automatic needle winding Machine

The stator coil needle winding machine for bldc motor working video

BLDC fan motor stator automatic needle winding Machine
