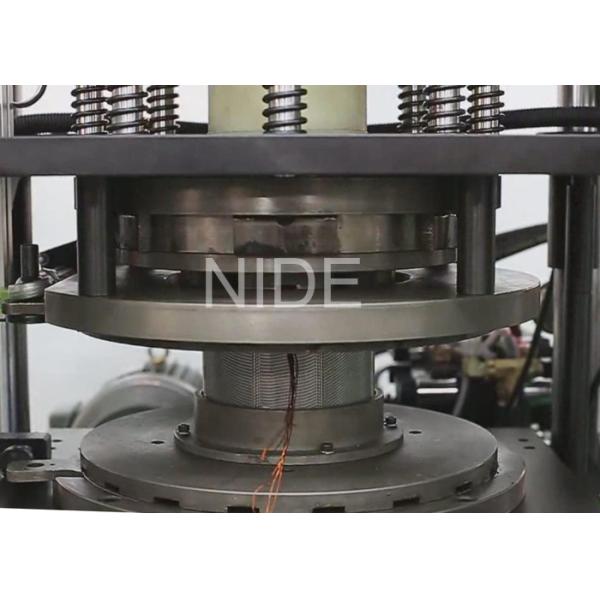

Electrical Motor Stator Coil Forming Machine For Copper Wire / Aluminum Wire
Electrical Motor Stator Coil Forming Machine For Copper Wire / Aluminum Wire
Electrical Motor Stator Coil Forming Machine For Copper Wire / Aluminum Wire
Electrical Motor Stator Coil Forming Machine For Copper Wire / Aluminum Wire
Electrical Motor Stator Coil Forming Machine For Copper Wire / Aluminum Wire
Electrical Motor Stator Coil Forming Machine For Copper Wire / Aluminum Wire
Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
CE
Model Number :
Z2XJ1-150-160
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
35 working days
Payment Terms :
T/T, L/C
Supply Ability :
120 sets per year
Certificate :
CE
Customized service :
Available
Condition :
New
HS :
8479819000
Description

Electrical Motor Stator Coil Forming Machine For Copper Wire / Aluminum Wire

Quick Detail:

1. Middle forming is done after winding inserting but before winding lacing.
2. This machine is driven by hydraulic system.
3, PLC programming
4. The stator O.D. maximum is 160mm.
5. It can be designed as per customer's stator.

Description:

Stator Winding Middle Forming Machine is driven by hydraulic system; PLC programming;individual guard teeth in each slot settles fied wire and jump wire to ensure the reliability of electrical leakage distance; whole schematic design of inner expansion, outer wrapping and edge forming ensures appropriate winding outside dimension. Middle forming is done after winding inserting but before winding lacing.

Technical Data:

Stator I.D

30~100mm

Max stator O.D

160mm

Stator stack height

16~100mm

Displacement of oil pump

20F

Voltage

380V/50Hz

Power

3750W

Machine productivity

Around 1500pcs/8hours

Weight

1000Kg

Dimension

1200mm × 750mm × 2500mm

Competitive advantages:

It can be designed as per customer's stator.

Daily maintenance

Each time before using, check mechanical, electrical, hydraulic, pneumatic and lubricating parts.

After work finished, clean up machine and reset machine to make all the parts to go back to original position.
