Semi-auto Armature Balancing Machine for electric motor
Semi-auto Armature Balancing Machine for electric motor
Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
None
Model Number :
ND-B012
MOQ :
1 pc
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
35 working days
Payment Terms :
T/T, L/C
Supply Ability :
60 sets per month
Product name :
armature balancing machine
Usage :
balancing rotor
Application :
Rotor dynamic balancing
Color :
RAL9010 or as per customer requirement
Description

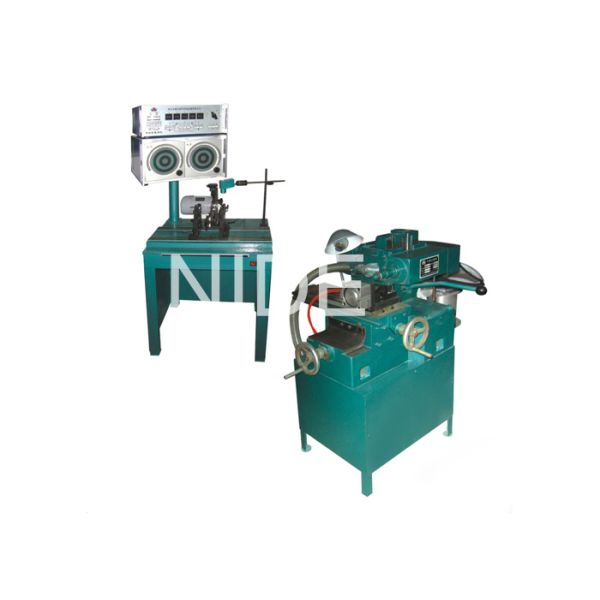

Semi-auto Armature Balancing Machine

Quick Detail:

1. Model No.:ND-B012
2. This balancing machine is semi auto.
3. Loading and unloading is done manually.
4. Usually it equipped with a manual weight removing machine.
5. The Max O.D. of armature is 260mm.

Description:

This kind of Armature Balancing Machine is a semi-automatic armature balancing machine, Armature load and unload is by manual. Usually it equipped with a manual weight removing machine.



Technical data:

Weight range of armature (kg)

5

Max O.D of armature (mm)

φ260

Distance between two supports (mm)

50~400

Shaft diameter range (mm)

5~40

Armature O.D range (mm)

φ15~150

Balancing speed (r/min)

500-3000RPM

Motor power (kw)

0.12

Min acquirable residual unbalancing value (emar)

0.3g.mm/kg

Unbalance reduction ratio URR

>90%

Machine weight (kg)

330
