Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
None
Model Number :
ND-B012
MOQ :
1 pc
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
40 working days
Payment Terms :
T/T, L/C
Supply Ability :
200 sets per year
condition :
new
color :
green or customized
used for :
armature/rotor balancing tesing and weight removing
Description

Semi Automation Armature Motor Rotor Balancing testing and weight removing mahcine.

Quick Detail:

1. This balancing machine is semi auto.
2. The balancing Machine will do balancing automatically.
3.Loading and unloading is done manually.
4.This balancing machine does balancing by removing weight.
5. The Max O.D of armature is 260mm.
6. Min acquirable residual unbalancing value is 0.3g.mm/kg

Description:

This kind of Armature Balancing Machine is a semi-automatic armature balancing machine, The balancing Machine will do balancing automatically. Armature load and unload is by manual.This machine does belancing by removing weight. Min acquirable residual unbalancing value is 0.3g.mm/kg

Application:

This rotor balancing testing and weight removing machine is suitable for rotor will meet the technical data.


Technical data:

Weight range of armature (kg)

5

Max O.D of armature (mm)

φ260

Distance between two supports (mm)

50~400

Shaft diameter range (mm)

5~40

Armature O.D range (mm)

φ15~150

Balancing speed (r/min)

500-3000RPM

Motor power (kw)

0.12

Min acquirable residual unbalancing value (emar)

0.3g.mm/kg

Unbalance reduction ratio URR

>90%

Machine weight (kg)

330

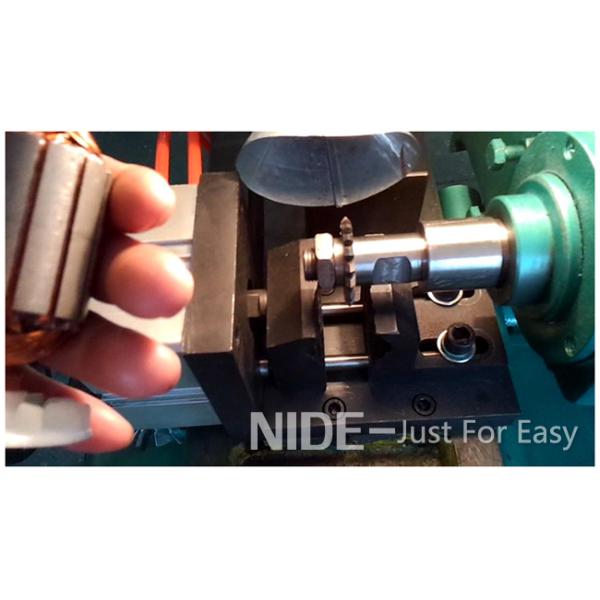

The armature balancing tesing and weight removing machine weight balancing process

Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine

The armature balancing tesing and weight removing machine weight removing process

Semi Automation Armature Motor Rotor Balancing Machine / Balancer Machine and weight removing machine
