Automatic Armature rotor wedge inserting machine
Automatic Armature rotor wedge inserting machine
Automatic Armature rotor wedge inserting machine
Automatic Armature rotor wedge inserting machine
Automatic Armature rotor wedge inserting machine
Automatic Armature rotor wedge inserting machine
Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
None
Model Number :
ND-LSI-1W
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
35 working days
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Name :
Wedge inserting machine
use for :
inserting the wedge of rotor
control :
PLC
Type :
small
condition :
new
Description

Armature wedge inserting machine

Quick Detail:

1. This armature wedge inserting machine will automatically insert wedge into slots.
2. The rotor wedge inserting machine is used for inserting wedge to armature slots.
3. The armture wedge is easy to change the tooling.
4. PLC controlled.
5. It runs in high automation degree.
Description:

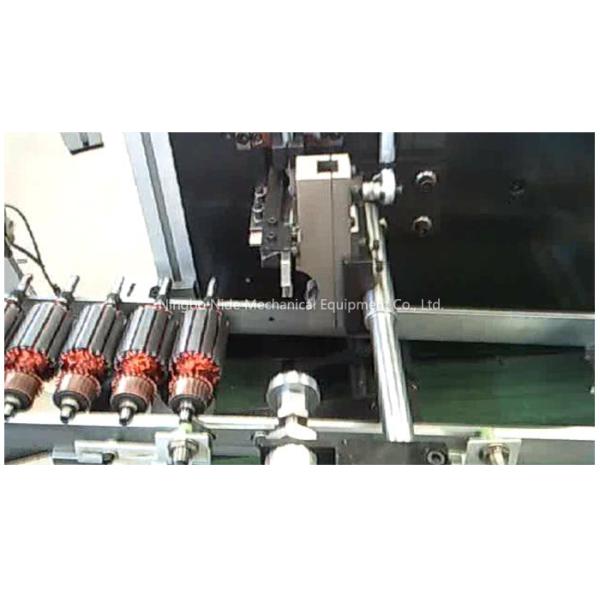

Armature wedge inserting machine is used for inserting the wedge of rotor. Armature wedge inserting machine is applied to the field of mass production for rotor, and it is easy to change the tooling. Moreover,the machine body is light and elaborating. The complete machine is controlled by the Siemens programmable controller (PLC), which is made in German. It runs in high automation degree. If only the rotor to be processed is placed on the feeding track, the machine will finish the work such as the rotor lifting, clamping, shaping of the insulating paper, cutting and inserting automatically.

Technical parameter

Item

Specification

Armature O.D

20~60mm

Armature stack length

20~60mm

Shaft O.D

3~17mm

Slot number

6~24 slots

Efficiency

7S/pc (if slot number is 12)

Air source

0.4~0.7MPa

Rated power

1.5KW

Voltage

AC220V, 50Hz

Function and feature

It is of high reliability to be under the control of Siemens PLC.
The electromechanical linkage device and the faults detection system is mounted.
Pneumatic workpiece clamping.
The English operation screen is availble.

Competitive advantages:

This armature rotor wedge inserting machine is easy for operation. It’s helpful for customer to reduce labor cost and improve production efficiency. And this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control.

Automatic Armature rotor wedge inserting machineAutomatic Armature rotor wedge inserting machine

Besides paper inserting machine, We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Automatic Armature rotor wedge inserting machine

Automatic Armature rotor wedge inserting machine

Automatic Armature rotor wedge inserting machine
