Motor Stator Coil Winding And Coil Automatic Coiling Machine / Equipment High Speed

Quick Detail:

1.This machine could dong coil winding and coil inserting automatically.
2.This machine is used for induction motor stator.
3. PLC and touch screen control.
4. Simple operation, low noise, fast speed and high automaticity.

Description:

This machine is can do coil winding, coil inserting and wedge inserting. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.This machine can detect the wire coating damage. The inserting station is controlled by servo motor. The parameter can be set in the touch screen.
With serval station working simultaneously, this machine is efficiency and saves labor cost.

Specifications :

Max stator O.D

≤φ150mm

Stator I.D

≤φ110mm

Stator stack length

30-120mm

Slot number range

8~48 slots

Appropriate Wire

0.18-φ1.2mm
Height of Coil 3

Appropriate wire

Copper wire/Aluminum wire
Winding inserting mode chained/same core
Pitch time ≤40s/pc

Voltage

380V50/60Hz

Power 15Kw

Air source

0.6-0.8MPa

Machine productivity

400pcs/ 8 hours

Machine Dimension

2000×(W)1300×(H)2300mm

Weight

≈4000Kg

Applications:

This machine can insert the winding/coil and the wedge/top cover into the stator slot simultaneously. It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

Competitive advantages:

Variety of application, easy operation.
We directly supply our magnets to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
We could customize machine for our customer.


Information needed for stator winding inserting machine inquiry

It will be better if customer could send us detailed drawing including below information.

1. Stator lamination drawing

2. Stator stack drawing

3. Stator winding drawing

4. Winding distribution drawing

5. Wedge drawing and its material

6. Stator application

7. Required productivity

8. Other technical requirement

If possible, it will be better if customer can send us samples.

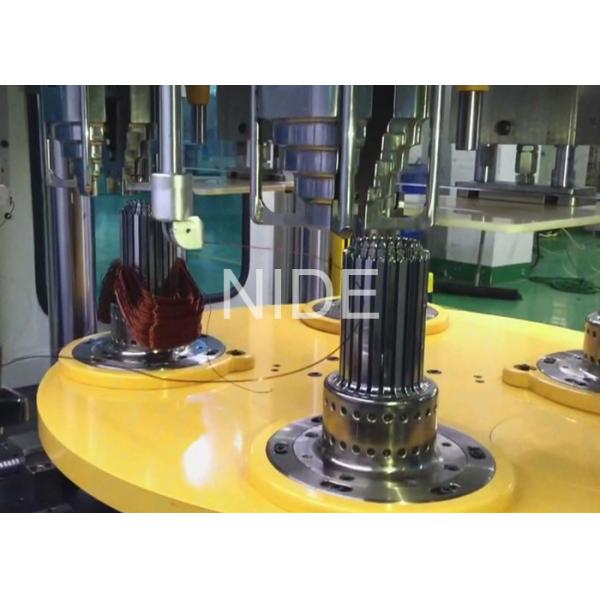

Machine working station
