Coil Expanding And Stator Winding Inserting Machine , Two Working Stations
Coil Expanding And Stator Winding Inserting Machine , Two Working Stations
Specifications
Brand Name :
Nide
Model Number :
QKW1-300/300
Certification :
None
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
120set
Delivery Time :
45 working days
Packaging Details :
Wooden case suitable for sea transportation
Condition :
New
Customized service :
Available
Working station :
two working stations
Function :
insert and expand coil
Name :
winding inserting and coil expanding machine
Certificate :
CCC
Machine color :
RAL9010 or as Per Customer Requirement
After-Sales Service :
Overseas Service Center Available
Description

Stator winding inserting and coil expanding machine

This stator winding inserting and coil expanding machine is applied for statos which needs to do winding inserting several times. This machine is a combination of two machines, namely winding inserting machine and coil expanding machine. As a result, it has two working stations, one for coil inserting, and the other for coil expanding.

After winding inserting process, it will transfer to expanding station to do coil expanding. It will circulate the winding inserting and expanding process till it is finished. Tis machine adopts AC servo to control the wire inserting and wedge inserting. The expanidng process is controlled by hydraulic system. The parameter can be displayed and set in the HMI.

Application

It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

Main technical data

Stack height ≤300mm
Max stator OD ≤300mm
Stator ID range ≤200mm
Approriate wire 0.18~1.2
Displacement of cylinder 50L/min
Power supply 380V/50HZ
Power 10KW
Dimension 3600x1670x1700mm
Weight 2000KG

Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

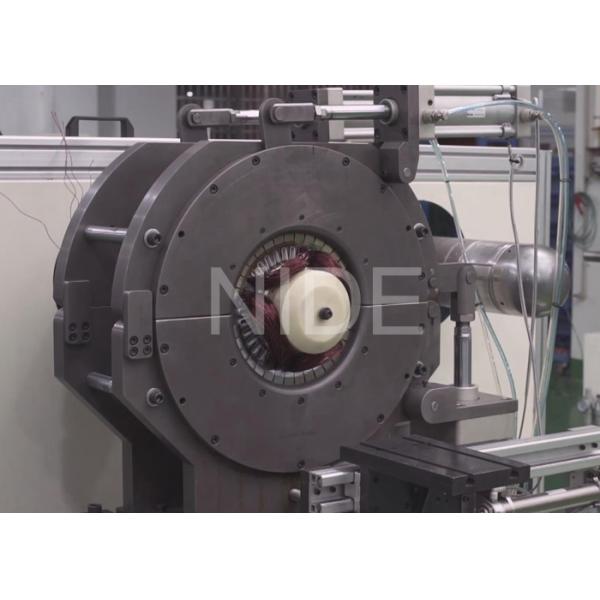

Coil inserting ing working station

Coil Expanding And Stator Winding Inserting Machine , Two Working Stations

Coil Expanding And Stator Winding Inserting Machine , Two Working Stations
