380V/50HZ Stator Winding Inserting Machine , Coil Insertion Machine
380V/50HZ Stator Winding Inserting Machine , Coil Insertion Machine
Specifications
Brand Name :
Nide
Model Number :
NI-HSX-5A
Certification :
None
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
120set
Delivery Time :
45 working days
Packaging Details :
Wooden case suitable for sea transportation
Condition :
New
Customized service :
Available
Certificate :
CCC
Working station :
Single working station
Machine color :
RAL9010 or as Per Customer Requirement
After-Sales Service :
Overseas Service Center Available
Description

(1) Machine mainfunction and characteristic

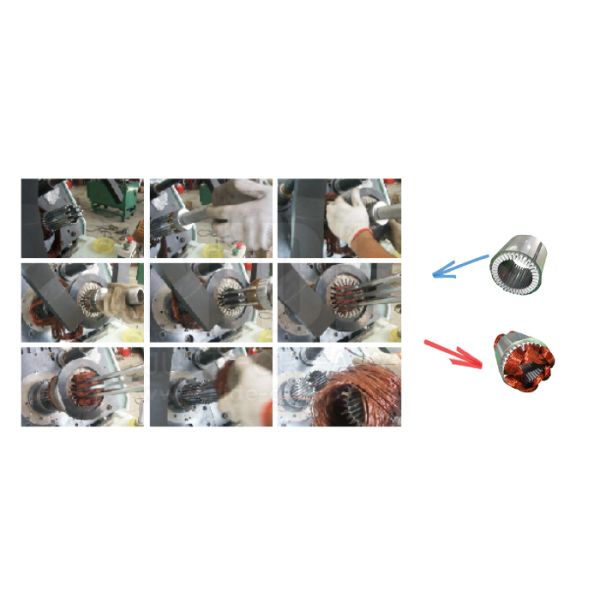

This stator coil inserting machine is used to insert coil and wedge into stator slots. The whole insertion process only takes 20 seconds. Machine is very easy to operate and the mantainance is simple. It can increase the productivity and save labor cost.

(2) Main technical data

Stack height 10-90mm/90-120mm
Max stator OD 160mm
Stator ID range 40-110mm
Air pressure 0.5-0.8Mpa
Power supply 380V/50HZ
Power 2.5KW/0.75KW
Dimension 1500x800x1700mm
Weight 900KG

(3) Application

It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

(4) Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
