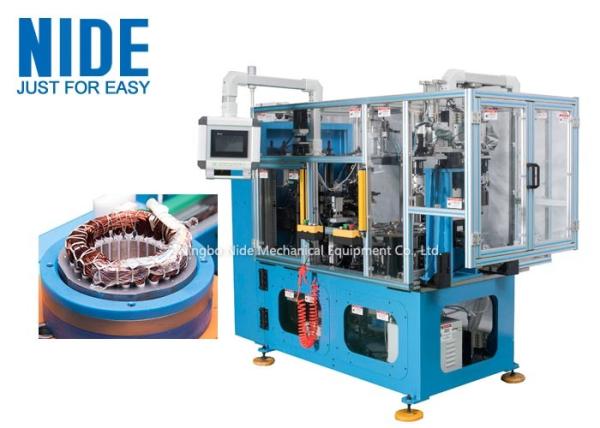

Automatic Production Machine Stator Winding Lacing Machine High Efficiency

Quick detail:

1) This automatic stator lacing machine is used to lace stator windings.

2) This lacer machine has four working stations.

3) The lacing process is done by machine automatically.

4) All the related parameter can be programmed in touch screen.

Application
This automatic stator coil lacing machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

Technical data

Stator ID ≤100mm
Stack Height 30-160mm
Height of Coil ≤65mm
Pitch time ≤14s/pc(24 slots)
Air Pressure 0.4-0.6MPa
Power supply 380V 50/60Hz 6Kw
Weight ≈1500Kg
Dimension 2000×1100×1900mm



Machine main function and characteristic
This machine adopts turntable plates structure with four working station, equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and ect. Overhang winding adopts twin needle lacing simultaneously. Needle transpositioning, hooking and stator indexing are controlled by five spindle servo system.
Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing. With fast speed, low noise, simple operation and easy tooling change, this machine can be connected to automatic stator production line.
