PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
Specifications
Brand Name :
Nide
Model Number :
XS-100T-K
Certification :
None
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
60 working days
Packaging Details :
Wooden case suitable for sea transportation
Supply Ability :
120 sets per year
Name :
Automatic rotor die casting machine
Function :
Cast aluminum to rotor
Condition :
New
Package :
pallet
Description

Rotor Automatic Aluminium Die Casting Machine With Water Cooling System

(1) Technical requirement

1.The die-casting machine is controlled by PLC.

2. Injection cylinder has three different injecting mode, slow injecting, fast injecting and secondary injecting. The injecting flow of fast injecting can be manually adjusted.

3. Machine is equipped with auto feeding device, cutting device and mold unloading device.

4.This machine has protector doors on all sides. It is pneumatic protector door in the fore-and-aft direction.

5. Machine is equipped with water cooling system.

6. Each machine is equipped with two pieces of stuff canister, which is customized.

(2) Parameter

Specification 100T
mold clamping force 1000Kn
Oil cylinder travel 480mm
Max opening 800mm
Injecting force 400Kn
injection cylinder travel 180mm
Working station area 680x820mm
injection chamber OD 60—120 mm
Motor power 15—4 KW
Oil pump model number CY—63

(3) Machine feature

1.Rapid mould closing

2. With feeding, cutting and mold unloading device

3. It can once make four products if the rotor outside diameter is within 40mm.

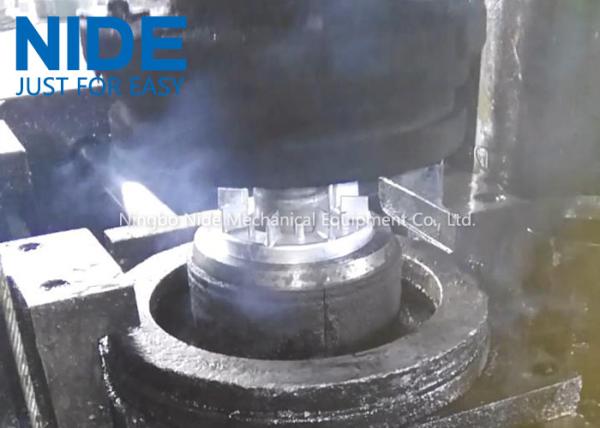

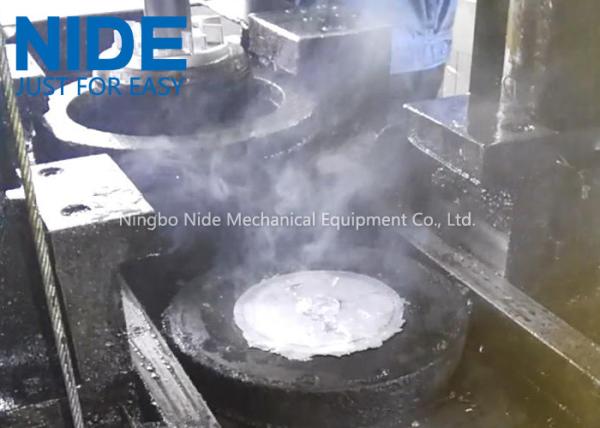

Rotor die casting machine working process
PLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling SystemPLC Rotor Automatic Aluminium Die Casting Machine With Water Cooling System
