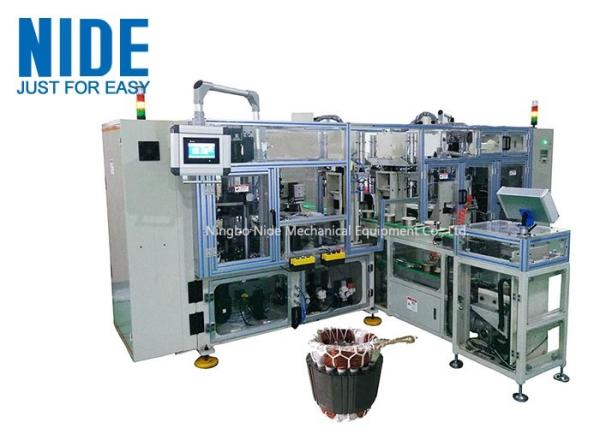

Conveyor type automatic stator coil lacing machine with Four station

This lacing machine is equipment with a conveyor which can be used to transfer the stators. Due to the four working station, this lacing machine is of great automation. During lacing process, operator load the stators, then the machine will automatically do the lacing process. It is conrolled by PLC, and all the parameter can be displayed and set in the touch screen. The machine can store different stator parameter.

Technical data of lacing machine

Stator OD φ40-φ160mm
Stator ID ≤100mm
Stack Height 30-160mm
Height of Coil ≤65mm
Pitch time ≤14s/pc(24 slots)
Air Pressure 0.4-0.6MPa
Power supply 380V 50/60Hz 6Kw
Weight ≈1500Kg
Dimension (L)2000×(W)1100×(H)1900mm


Application
It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

Machine main function and characteristic
This machine adopts turntable plates structure with four working station, equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and ect. Overhang winding adopts twin needle lacing simultaneously. Needle transpositioning, hooking and stator indexing are controlled by five spindle servo system.
Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing. With fast speed, low noise, simple operation and easy tooling change, this machine can be connected to automatic stator production line.

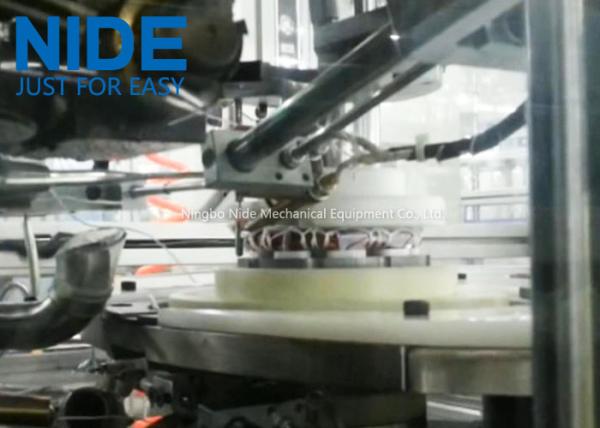

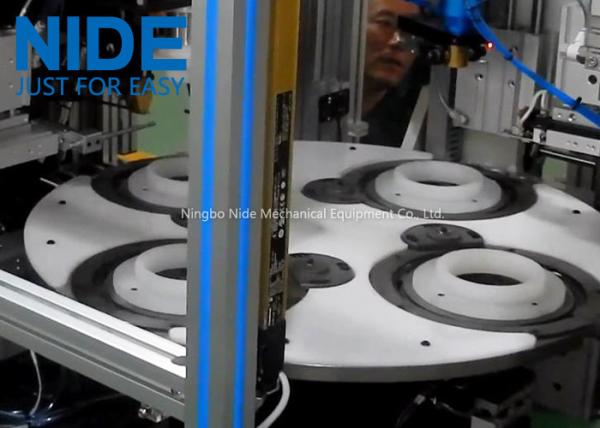

The working station of this lacing machine

Conveyor type automatic stator coil lacing machine with Four station

Stator made by this machine

Conveyor type automatic stator coil lacing machine with Four station
