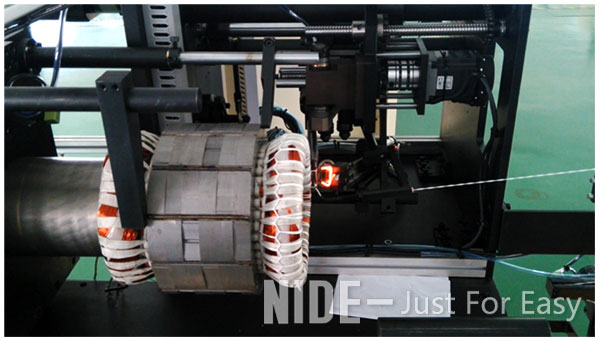

Horizontal structure automatic lacing machine for three phase motor stator end coil

The type of stator winding lacing machine adopts a horizontal working station structure. It is suitable for the big stator with high winding over-hang. Safety, quality and efficiency are the cornerstones of this lacing machine.
Different lacing methods like slot-by-slot lacing, interval lacing and fancy lacing are programmable in the touch screen. There are no dangerous manual manipulations of the lead ends necessary. Eliminating the major risk for injuries at a lacing machine.The tooling change is easy, stator loading and unloading is fast.

Technical data

Machine structure
This machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement,nozzle swing part, needle up and down movement part, stator indexing part,thread feeding,thread cutting part.

Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
This machine is controlled by PLC. All the parameter could be set on the touch screen,

Information needed for stator lacing machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Stator winding drawing
4.Winding drawing
5. Other technical requirement

If possible, it will be better if customer can send us samples.

Picture show

Machine touch screen

The Horizontal Type Automatic Stator Coil Lacer lacing machine working video
