Fully Automatic Coil Winding Machine alternator stator winding machine
Fully Automatic Coil Winding Machine alternator stator winding machine
Fully Automatic Coil Winding Machine alternator stator winding machine
Fully Automatic Coil Winding Machine alternator stator winding machine
Fully Automatic Coil Winding Machine alternator stator winding machine
Fully Automatic Coil Winding Machine alternator stator winding machine
Fully Automatic Coil Winding Machine alternator stator winding machine
Fully Automatic Coil Winding Machine alternator stator winding machine
Fully Automatic Coil Winding Machine alternator stator winding machine
Fully Automatic Coil Winding Machine alternator stator winding machine
Specifications
Brand Name :
Nide
Model Number :
RXL4-100D
Certification :
None
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
60 working days
Packaging Details :
Wooden case suitable for sea transportation
Machine color :
RAL9010
Machine size :
Middle size
Certificate :
CCC
Working station :
Eight working station
Condition :
New
Customized service :
Provided
Description

Fully Automatic Coil Winding Machine alternator stator winding machine With Eight Working Station

Quick Detail:

1. This winding machine machine is suitale for motor stator to do coil winding.
2. this coil winding machine is equipped with 4 winding heads and 8 working stations.
3. This coil winding machine is controlled by the touch screen. All the data can be set in the touch screen.
4. Wire tension of this stator winding machine is stable and adjustable.

Technical Parameter:

Wire diameter 0.19~1.2mm
Swing diameter 220mm
Operation station 8
Winding head 4
Max stack height 100mm
Max stator OD 120m
Max RPM 2500RPM
Air source ≥0.5MPa
Power supply 380V 50/60HZ 15KW
Weight about 5000KG
Dimension

(L)2100*(W)1350*(H)2200mm

Description:

High efficiency is its feature, with four winding heads and eight operation stations. The machine automatically put the coil into transfer former orderly, especially suitable for high production capacity requirement, high slot filling rate, small slot opening stator coil winding. Winding mode, such as auto skip, auto cutting and auto indexing could be completed at a time successively, parameter could be set in human-machine interface. Continuous/discontinues winding way and meets the 2 poles. 4 poles, 6 poles coils winding.

Application: it is suitable for 2 poles. 4 poles, 6 poles stator and also for middle or big size stator.

Information needed for Automatic Stator Coil Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3.Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.

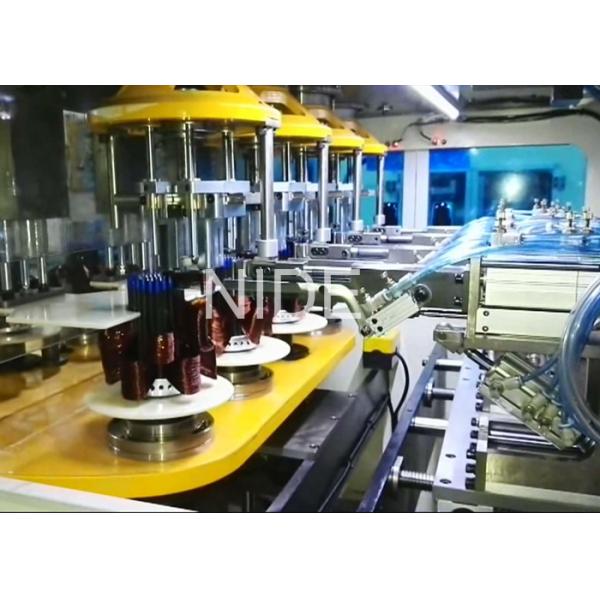

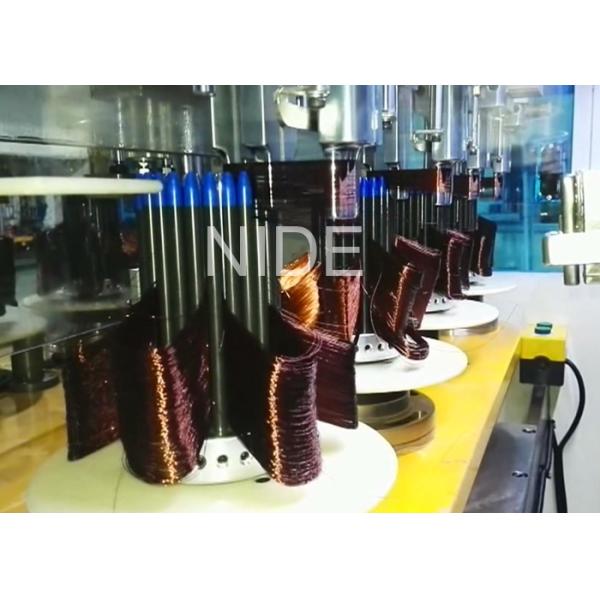

Coil winding machine working station

Fully Automatic Coil Winding Machine alternator stator winding machine

Fully Automatic Coil Winding Machine alternator stator winding machine

Video Link:

Fully Automatic Coil Winding Machine alternator stator winding machine
