Specifications
Brand Name :
nide
Model Number :
ND-LHL-QSFA-B
Certification :
none
Place of Origin :
china
MOQ :
1 SET
Price :
NEGOTIABLE
Supply Ability :
100 SETS PER YEAR
Delivery Time :
70 working days
Packaging Details :
Wooden case which is suitable for sea transport
name :
armture commutator turning machine
color :
Blue or customized
conditon :
new
Control :
PLC
Type :
Fully automatic
armature OD. :
20-85MM
commutator OD. :
12-40MM
shaft length :
32-200MM
Description

Fully auto armature commutator precision turning machine collector turner lathe machine

(1) Machine function and characteristic

Equipped with lubrication device and aluminum alloy frame, this armature commutator turning machine features advance technology and modern shape, has easy operation system and self-checking system.

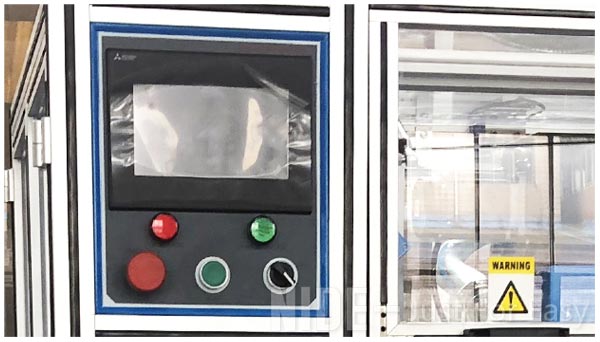

Meanwhile, this commutator turner can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control the turning lathe. Cutter feeding and cutting is controlled by servo motor.Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block.

(2)Applications:
The rotor commutator turning machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.

(3) Main technical data:

Production name: Fully automatic Motor rotor commutator turning machine
Concentricity: ≤0.0025-0.0035mm
Armature shaft diameter range: 3~17mm
Armature diameter range: 20~85mm
Commutator O.D. range: 12~40mm
Shaft length range: 32~200mm
Roundness between bars: ≤0.0015-0.0025mm
Cutting speed: PLC adjustable
Weight each cutting: Max 0.20mm
Speed frequency range: 0~90Hz
Surface roughness: ≤Ra 0.40
Fixture: Diamond V block
Control: PLC system
Air pressure: 4~6kg/cm2
Efficiency: Cycle≤10s per pc
Frequency: 50/60Hz
Voltage: AC220V±10%
Motor Power: 2.5KW
Machine dimension: 850mm x 950 mm x 1,830mm
Weight: 1100Kg

(4) The commutator turner picture show:

1.The front of the commutator turning machine

Fully Auto Armature Rotor Turning Machine Plc Control In Blue / Customized Color

2.The Side of the commutator turning machine

Fully Auto Armature Rotor Turning Machine Plc Control In Blue / Customized Color

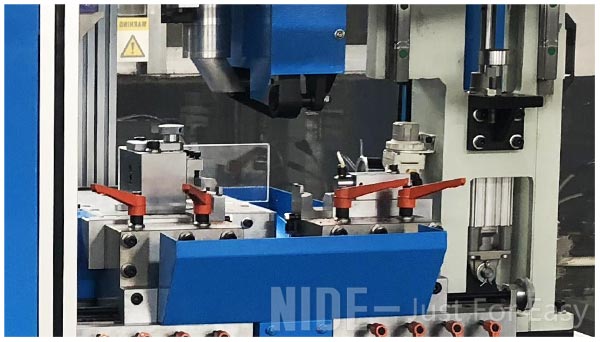

3.The Work area details of the commutator turning machine

Fully Auto Armature Rotor Turning Machine Plc Control In Blue / Customized Color

Fully Auto Armature Rotor Turning Machine Plc Control In Blue / Customized Color
