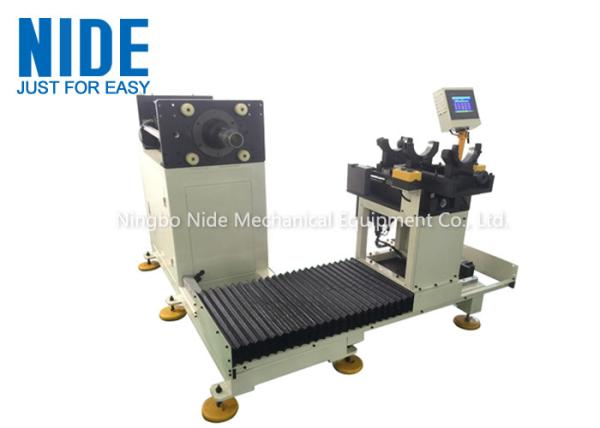

Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor
Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor
Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor
Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor
Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor
Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor
Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor
Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor
Specifications
Brand Name :
Nide
Model Number :
QWB1-600/150A
Certification :
None
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100set per year
Delivery Time :
60 working days
Packaging Details :
Wooden case suitable for sea transportation
Machine color :
RAL9010 or as Per Customer Requirement
After-Sales Service :
Overseas Service Center Available
Machine size :
Middle size
Certificate :
CCC
Condition :
New
Working station :
Sinlge
Control method :
PLC
Dimension :
L2100*W2000*1600mm
Description

Horizontal Type Semi-Auto Deep Water Pump Motor Sinlge Stator Coil Insereting Machine

(1) Main technicaldata

Stator Stack length 300~600mm
Stator OD Max 300mm
Stator ID 50~150mm
Wire diameter 0.18~1.2mm
Voltage 380V/50/60HZ
Power 3.5Kw
Weight about 1200kg
Dimension L2100*W2000*1600mm

(2) Application
It is applied to deep water pump motor and other various type of overlength motor stator.

(3) Machine mainfunction and characteristic
This is horizontal type semi-auto winding inserting machine. It adopts Mitsubishi AC servo motor and pneumatic element system drive. It si controlled by PLC and equipped with X and Y spindle auto feeding device. It can automatically insert coil and wedge into stator slot simultaneously.

(4) Competitive advantages

Variety of application, easy operation.

We have Overseas Service Center.

Machine is controlled by PLC. All the parameter can be set in the touch screen.

It is suitable for stators with different model number and dimension.

The operation and tooling change process is easy.

We could customize machine for our customer as per their requirement.

We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

(5) Information needed for stator winding inserting machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Wire connection drawing
4. Stator application
5 Required productivity
6 Other technical requirement

The Deep Water Pump Stator Coil Insereting :

Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor

Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor
