Bladeless Fan Electric Motor Winding Equipment 1400 X 1000 X 2000mm Plc Controlled
Bladeless Fan Electric Motor Winding Equipment 1400 X 1000 X 2000mm Plc Controlled
Bladeless Fan Electric Motor Winding Equipment 1400 X 1000 X 2000mm Plc Controlled
Bladeless Fan Electric Motor Winding Equipment 1400 X 1000 X 2000mm Plc Controlled
Bladeless Fan Electric Motor Winding Equipment 1400 X 1000 X 2000mm Plc Controlled
Bladeless Fan Electric Motor Winding Equipment 1400 X 1000 X 2000mm Plc Controlled
Specifications
Brand Name :
Nide
Model Number :
RXN1-100/150
Certification :
None
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
60 working days
Packaging Details :
Wooden case suitable for sea transportation
Machine name :
needle winding machine
Certificate :
CCC
Condition :
new
Working station :
two working station
Weight :
750KG
Dimension :
1400x1000x2000mm
Description

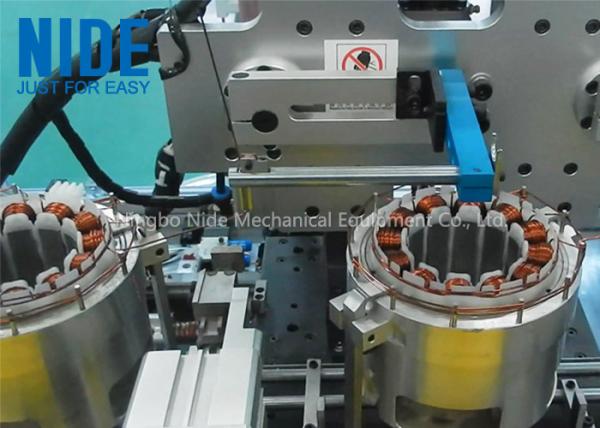

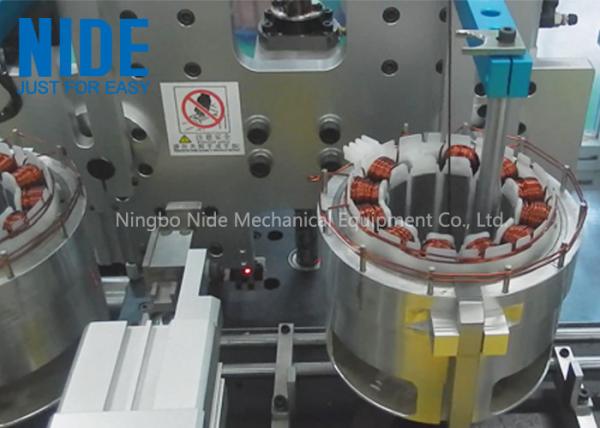

Automatic Stator Needle Winding Machine for Bladeless Fan Motor

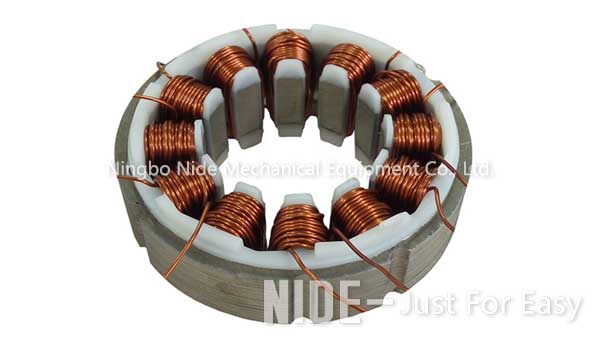

This needle winding machine is suitable for winding BLDC stator. It is suitable for stator with different model number and dimension. It equips with servo system. It can automatically interwine wire end, winding, arraying, indexing, cutting, demolding.This machine is controlled by PLC. All the parameter could be set on the touch screen, The operation and tooling change process is easy. We could customize machine for our customer as per their requirement.

Technical parameter of BLDC motor needle winding machine

Stator O.D

≤250mm

Statck ID:

≥50mm

Wire diameter

0.3~1.4mm

Stator stack length

10~200mm

Working station

two working station

Control method

PLC

Date set

in touch screen

Light curtain

available

Air pressure

5~7Kg/cm2

Total power

2KW

Voltage

220V 50/60HZ

Weight

750KG

Dimension

1400x1000x2000mm

Competitive advantages

Variety of application, easy operation.

We have Overseas Service Center.

It is suitable for rotor or stator with different model number and dimension.

The operation and tooling change process is easy.

We could customize machine for our customer as per their requirement.

We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
This machine is controlled by PLC. All the parameter could be set on the touch screen

Information needed for BLDC Stator Coil Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.
