Compressor Stator Motor Winding Machine 380v Automatic Vertical Type
Compressor Stator Motor Winding Machine 380v Automatic Vertical Type
Compressor Stator Motor Winding Machine 380v Automatic Vertical Type
Compressor Stator Motor Winding Machine 380v Automatic Vertical Type
Compressor Stator Motor Winding Machine 380v Automatic Vertical Type
Compressor Stator Motor Winding Machine 380v Automatic Vertical Type
Specifications
Brand Name :
Nide
Model Number :
RXL2-160A
Certification :
None
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
35 working days
Packaging Details :
Wooden case suitable for sea transportation
Name :
Stator coil winding machine
After-Sales Service :
Overseas Service Center Available
Winding head :
1pc
Wire diameter :
0.2~1.2mm
Transfer number :
1~7 section
Power supply :
380V/50/60HZ 7KW
Weight :
about 1200kg
Dimension :
L2400*W1100*2450mm
Description

Automatic coil winding machine for compressor stator motor winder

This coil winder is a vertical type winding machine for motor stators with a single-head and double-station, especially suitable for high slot filling rate, small notch stator. Winding mode such as automatic skip, automatic cutting and automatic indexing can be finished at a time successively.

(1) Machine main function and characteristic

Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.

The working rotation speed can be set . Machine has no distinct vibration and noise.

Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.

PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.

X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.

Tooling sunk adopts servo system. The max segment number of tooling sunk is 7.

Winding tooling: each machine has one set winding tooling and three vertical winding forms.

The whole set of tooling can be changed, and it takes about 15min.

The turntable is two stations structure. It adopts servo system to rotate and index transfer form.

Allow three wires winding simultaneously.

(2) Main technical data

Winding head 1pc
Wire diameter 0.2~1.2mm
Winding speed ≤2000RPM
Max stack OD 210mm
Max stack height 160mm
Fly fork diameter 400mm
Transfer number 1~7 section
Power supply 380V/50/60HZ 7KW
Weight about 1200kg
Dimension

L2400*W1100*2450mm

(3) Application:

This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

The stator coil winding machine winding diagram

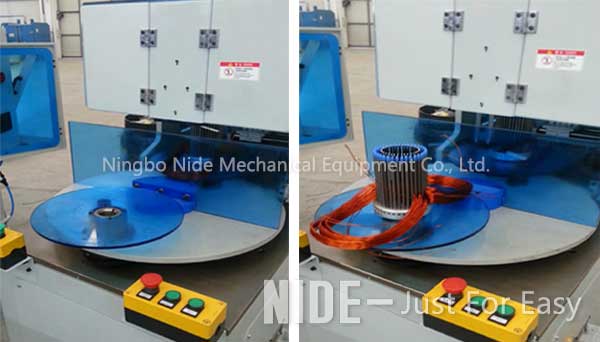

Compressor Stator Motor Winding Machine 380v Automatic Vertical Type
