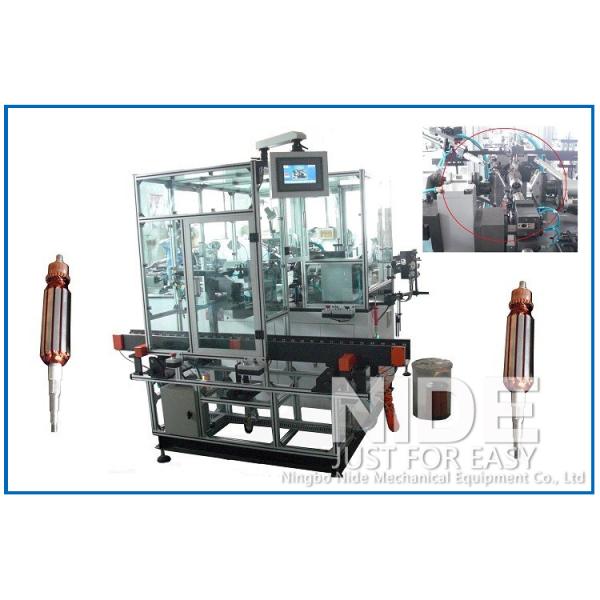

Automatic Double Flyer Rotor Windier armature Coil Winding machine for Hook Type Commutator

(1) Application

The automatic Double Flyer armature Coil Winding machine is suitable for home appliance, car and power tool motor aramture.

(2)Technical Parameter:

Proudution name: ND-LAW-5B2 automatic Double Flyer armature Coil Winding machine
Wire diameter:

Magnetic hysteresis method: 0.16~0.55mm

/ Electric control method: 0.30~0.85mm
Armature O.D range: 20~60mm
Stack length: 20~60mm
Shaft diameter: 3~17mm
Shaft length: Less than 300mm
Armature slot: Even slot
Turn number: 0~9999
Commutator diameter: 12~40mm
Winding speed: 0~3000rpm
Winding motor power: 1.5KW* 2
Angle detecting speed: 0~3000rpm
Angle detecting motor power: 0.75KW*1
Air supply pressure: 4~6Kg/cm2
The machine total power: 4.0KW
Voltage: Three phase AC380V50/60Hz
Weight: 1200Kg
Dimension: 2000(length)X1300(width)X1800(height)mm

(3) Machine function and characteristic

This armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature. Automatic feeding, winding, indexing andwire cutting, only load and unload armature from material loader.

Equipped with touch screen and PLC, winding parameter could be set and modified on the screen.

We also have armature winding machine equipped with conveyor, operatoronly need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically. We could produce machine according to customer's armature accordingly.
