Specifications
Brand Name :
Nide
Model Number :
ND-S2W01G
Certification :
None
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
35 working days
Packaging Details :
Wooden case suitable for sea transportation
Supply Ability :
600 sets per year
Machine size :
Middle size
Automation type :
fully automatic
Certificate :
CCC
Condition :
New
Customized service :
Available
HS :
8479811000
Name :
needle winding machine
Application :
BLDC motor stator
Description

Motor Coil Winding Machine / Fan Stator Winding Machine Servo System

Quick detail

1. this needle winding machine equips with servo system.

2. It will automatically do winding process.

3. It is easy to operate.

4. The winding parameter can be set in touch screen.

5. It is suitable for BLDC stator to do winding.

Description

This stator coil winding machine is suitable for winding BLDC stator. It equips with servo system. It can automatically intert wire end, winding, arraying, indexing, cutting, demolding. It can diagnose fault, count output, etc. Other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed in the touch screen. This machine is easy to operate and maintain.

Technical parameter

Production Automatic BLDC Motor sator Coil Winding Machine
Suitable OD: ≤150mm
Suitable ID； ≥25mm
Suitable thichness: 10~100mm
Suitable wire diameter: 0.3-1.0mm
Power supply: 220V/ 50/60Hz
Weigth: 600Kg
Deminsion: 1400*900*2000mm

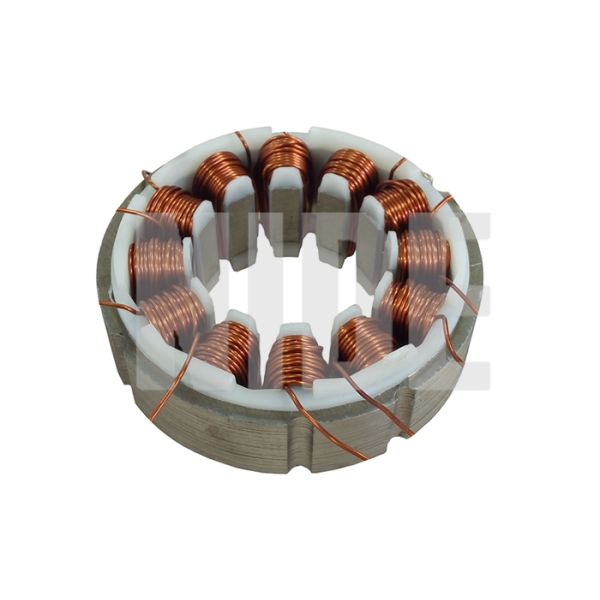

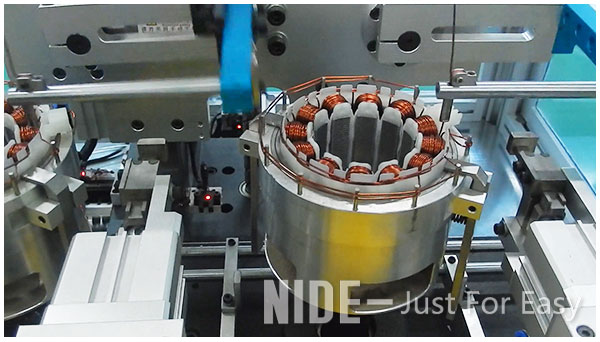

Picture show

BLDC Motor Coil Winding Machine / Fan Stator Winding Machine Servo System

BLDC Motor Coil Winding Machine / Fan Stator Winding Machine Servo System

BLDC Motor Coil Winding Machine / Fan Stator Winding Machine Servo System

BLDC Motor Coil Winding Machine / Fan Stator Winding Machine Servo System

BLDC Motor Coil Winding Machine / Fan Stator Winding Machine Servo System

Competitive advantages

Variety of application, easy operation.

We have Overseas Service Center.

It is suitable for rotor or stator with different model number and dimension.

The operation and tooling change process is easy.

We could customize machine for our customer as per their requirement.

We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
This machine is controlled by PLC. All the parameter could be set on the touch screen,

Operation step
1. Power on the machine
2. Thread the wire
3. Put stator to the working station table
4. Adjust the tooling according to different model stator
5. Set the stator diameter in the touch screen then select the pre-set data.
6. Press "start" button.
7. Machine will automatically do winding.
8. Take out the stator

BLDC needle winding machine.pdf

BLDC Motor Coil Winding Machine / Fan Stator Winding Machine Servo System

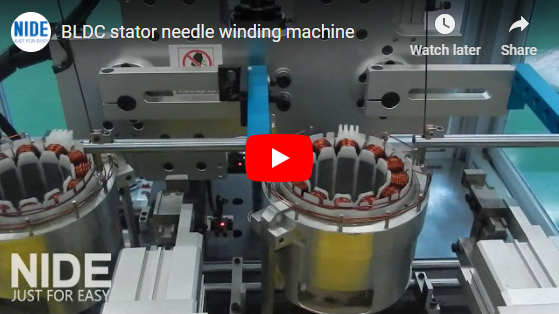

Please click below picture to view video.

BLDC Motor Coil Winding Machine / Fan Stator Winding Machine Servo System
