Customized 7AM Thermal Protector Home Appliance Motor Protectors
Customized 7AM Thermal Protector Home Appliance Motor Protectors
Customized 7AM Thermal Protector Home Appliance Motor Protectors
Customized 7AM Thermal Protector Home Appliance Motor Protectors
Customized 7AM Thermal Protector Home Appliance Motor Protectors
Customized 7AM Thermal Protector Home Appliance Motor Protectors
Specifications
Brand Name :
NIDE
Model Number :
NDPJ-RBHQ-80
Place of Origin :
China
MOQ :
5000
Price :
negotiate
Payment Terms :
negotiate
Supply Ability :
100000/month
Delivery Time :
negotiate
Packaging Details :
Suitable for sea transportation
Size :
Customized
Product name :
Home Appliance Motor 7AM Thermal Protector
Voltage :
110V-220V
Lead wire :
Optional
Warranty :
1 Year
Package :
Carton/Wooden Box
Color :
Red/Black
Material :
Aluminum/Copper/Iron
Description

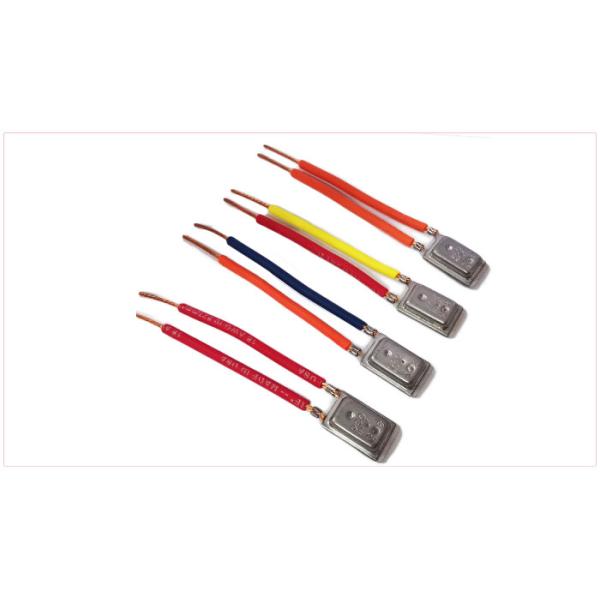

7AM Thermal Protector Home Appliance Motor Protectors

7AM Thermal Protector delivers the maximum protection in the smallest package . The bimetal disc welded in a steel can provides excellent thermal sensitivity and maximum protection properties. Each 7AM temperature rating has a bimetal disc specifically manufactured for that rating. Each device is then calibrated and checked for opening temperature. This results in optimum snap–acting open and reset characteristics necessary to achieve consistent performance over the required cycle life.

7Am Thermal Protector Features

Positive make and break

Individually temperature checked

Compact, miniature size

Repeatable temperature performance over life

Gasketed steel case suitable for most impregnation processes

Current and temperature sensitivity for maximum design flexibility and application

Wide selection of leads and insulating sleeves

7Am Thermal Protector Specifications

Product name: 7AM Thermal Protector Motor Protector
Rated Voltage: 125 Vac / 250 Vac
Dimensions: 20.2 x 10.8 x 4.9 mm (including terminals)
Life: 10,000 cycles / 8 A / 250 Vac (see approvals sheets)
Open Temperature: 70°C to 175°C in increments of 5°C
Temperature Tolerance: ±5°C
Differential Temperature: 19°C to 54°C, depending on open temperature
Seal:

High-seal and low-seal gasket material available

Customized 7AM Thermal Protector Home Appliance Motor Protectors

Customized 7AM Thermal Protector Home Appliance Motor Protectors

Customized 7AM Thermal Protector Home Appliance Motor Protectors
