6640 Class H Insulation Paper NMN Motor Insulation Material Custom
6640 Class H Insulation Paper NMN Motor Insulation Material Custom
6640 Class H Insulation Paper NMN Motor Insulation Material Custom
6640 Class H Insulation Paper NMN Motor Insulation Material Custom
6640 Class H Insulation Paper NMN Motor Insulation Material Custom
6640 Class H Insulation Paper NMN Motor Insulation Material Custom
Specifications
Brand Name :
NIDE
Model Number :
NDPJ-JYZ-18
Certification :
CE
Place of Origin :
China
MOQ :
100 kilogram
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000000 kilogram per month
Delivery Time :
30 working days
Packaging Details :
Wooden case suitable for sea transportation
Product name :
electrical insulation paper material
Color :
customized
Used for :
motor winding
Type :
motor insulation paper
name :
motorcycle motor parts
certification :
CE
Description

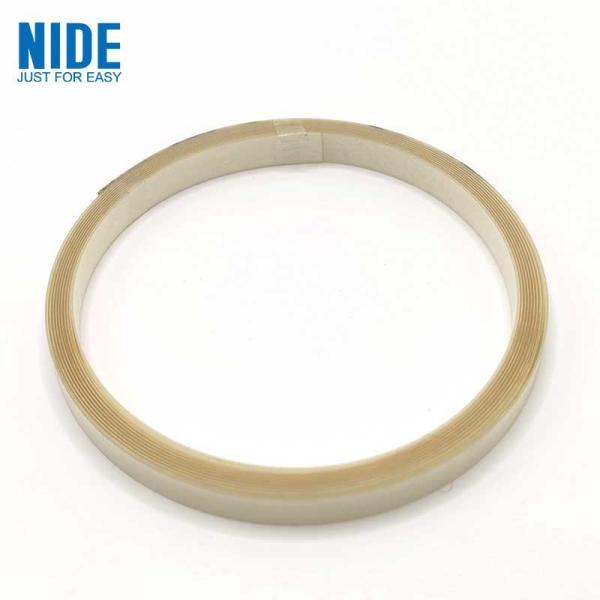

6640 Class H insulation paper NMN motor insulation material custom

6640 NMN insulation material is a three-layer composite material composed of one layer of polyester film and two layers of Nomex paper bonded with H-grade resin. It has excellent insulation properties and high temperature resistance. Mainly used as insulation and support materials for motors to protect the normal operation of the motor.
NMN insulation paper is widely used in motor windings and separators. The material has high tensile strength, good adhesion, wear resistance and high temperature resistance, and has a long service life. Therefore, it is widely used in various power tools, household appliances, aircraft, ships and other fields.

6640 NMN paper specification

Thickness 0.15mm-0.47mm
Width 5mm-914mm
Thermal class H
Working temperature 180degree
Color Light yellow

6640 Class H Insulation Paper NMN Motor Insulation Material Custom

6640 Class H Insulation Paper NMN Motor Insulation Material Custom

Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

6640 Class H Insulation Paper NMN Motor Insulation Material Custom

6640 Class H Insulation Paper NMN Motor Insulation Material Custom

About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
