Fully automatic double sides Electric Motor Stator Coil Lacing Machines

Description:

Loading stator vertically; equipped with pressing, automatic feeding, automatic cutting device, etc.;

Servo Double Sides Stator Winding Lacing Machine

overhang winding adopts twin needle lacing by servo system simultaneously;

needle indexing, hooking and stator indexing are controlled by servo system;

spindle adopts frequency speed control; slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface;

characterized by compact appearance, fast speed .low noise; simple operation and easy tooling change.

This stator coil lacing machine adopts vertical loading, single needle for single head coil automatic lacing, needle movement controlled by servo drive system to complete the lacing work. Main spindle speed is adjustable, industrial Programmable PLC and HMI could set slot by slot lacing,skip slot lacing and fancy lacing. Suitable for the lacing of multi-species, less yield or more lead wire stator. This machine has advantages of mature and advanced technology, reliable quality, easy operation and maintenance .

This machine is appropriate for micro induction motor like conditioner motor, washer motor, compressor motor, fan motor, alternator motor, pump motor etc.

Specifications :

Min. stator ID

33mm

Max. stator OD

150mm

Over-hang height

15~48mm

Stator stack length

15~120mm

Pitch time

About 0.5~0.7sec/slot

Power supply

380V/50/60Hz

Air pressure

0.5~0.8MPa

Power

3KW

Dimension

1570 x 670 x 1680mm

Weight

About 900kg

Applications:

The automtaic stator coil lacing machine is suitable for lacing the oven-hang of the induction motor stator. It is used for stator which meets the specification of below.

Competitive advantages:

Fast speed , low noise; simple operation and easy tooling change, double sides lacing simultaneously. PLC and touch screen control, it’s programmable.

Picture show:

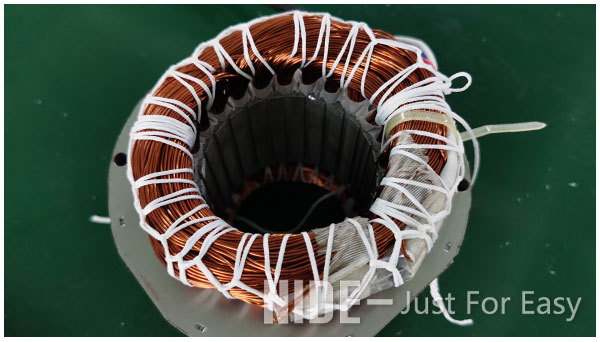

Servo Double Sides Stator Winding Lacing Machine
