AC380V Semi automatic armature winding machine for Vacuum cleaner motor

This electric motor armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature. Automatic feeding, winding, indexing and wire cutting, only load and unload armature from material loader.

(1) Machine function and characteristic

Three winding mode: single slot-single hook, single slot-double hook and double layer winding. It could do twice winding in one slot, four times winding in the two adjacent slots. It has automatic treatment for wire broken, 2 settable sequences is: winding before broken, or broken before winding.

Production parameter for 100nos armatures could be stored

Display parameter, including shift output, total output, consuming time, etc.

Automatic alarm if any abnormal condition occurs

Single action, automatic and stepping operation could be switched

Steady fixture, up and bottom protective tooling and protective wire hooking device

Loading mode: cylinder feeding armature automatically, get out finished armatures manually

Equipped with touch screen and PLC, winding parameter could be set and modified on the screen.

We also have armature winding machine equipped with conveyor, operator only need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically. We could produce machine according to customer's armature accordingly.

(2)Main technical data:

Product name: Semi Automatic armature winding machine
Wire diameter range: ￠0.25~￠1mm
Armature diameter: ￠20~￠60 mm
Armature stack length: 10~60 mm
Slot type: straight slot(not more than 36 slots)
Armature slot number: odd or even slot
Turn number: 0~99999
Commutator diameter: ￠18~￠40 mm
Winding speed: 0~3000 rpm
Indexing speed: 0~3000 rpm
Action: single action or automatic
Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC380V±10%, 50/60 Hz
Weight: about 1180 Kg
Dimension: 2000(length)X1300(width)X1800(height)mm3

(3) Application

The armature winding machine is suitable for home appliance, car and power tool motor aramture.

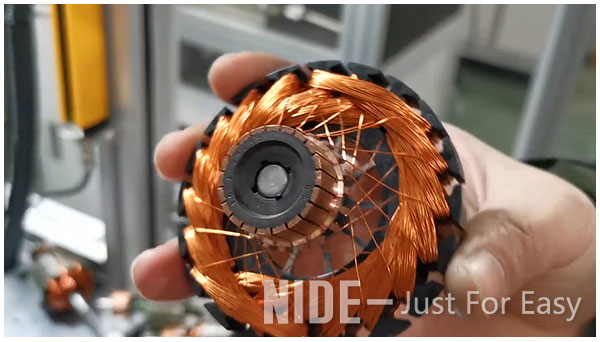

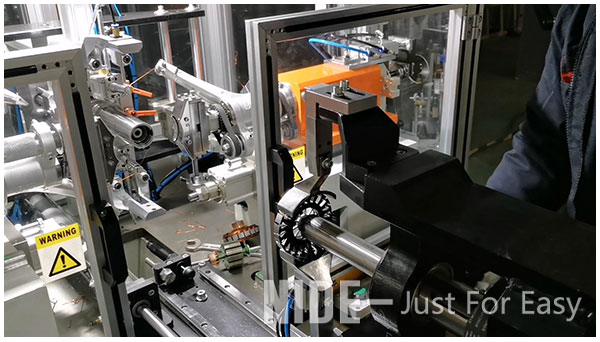

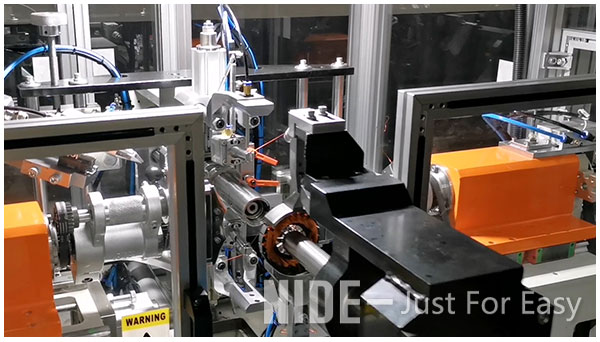

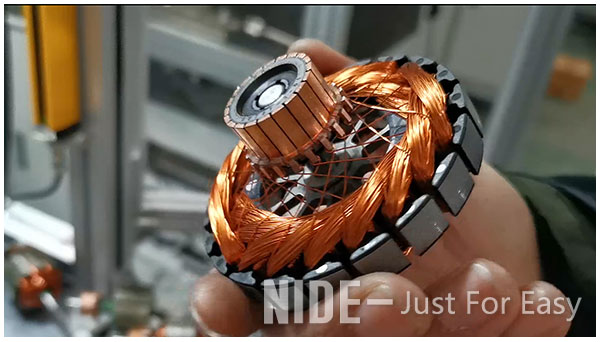

(4) Picture show
