35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine
35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine
35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine
35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine
35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine
35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine
35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine
35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine
Specifications
Brand Name :
Nide
Model Number :
ND-TST01
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800 sets per year
Delivery Time :
45 working days
Packaging Details :
Wooden case suitable for sea transportation
Product name :
Automatic stator wire terminal inserting machine
Tpye :
automatic
Stator stack length :
35mm~150mm
Cycle time :
20S
Voltage :
220V
Condition :
New
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Description

Full automatic crimp wire terminal connector insertion machine for motor stator manufacturing

The stator crimp wire terminal connector inserting machine is designed with 3 stations. The entire terminal pressing process is highly automated, without manual operation.

In the first station the pallet is indexed on the station. The lift aligns the stator against a table that uses stack references to align the terminal housing and inserter tool. The inserter tool is driven by servo motor to move from one terminal position to other one. The terminal insertion is pneumatic.

The second station is similar first one, however, instead insert the terminals U, V and W, this station inserts the COM bridge.

In the third station of machine, the stator is indexed, the exceed wire end will be cut automatically, and a probe test press the terminals and make the electrical contact. After completion stators are removed from line and loaded in a conveyor besides the station. We can add Electrical test functions in this station according to customer needs, such as DC resistance, IR, Surge, Hi-pot, Rotation.

Technical parameter:

Product name: Automatic crimp wire terminal connector inserting machine
Stator OD.: 50-200mm
Stator ID.: 50-150mm
Stator stack thickness: 35-150mm
Tooling change time: within 20 minutes.
Cycle time: 20S
Input power: 1.0KW.
Power supply: AC220V
Machine dimension: 1500X1100X1700(LXWXH)
Machine weight: 500KG

Application

The full automatic stator crimp wire terminal connector inserting machine is suitable for BLDC stator manufacturing.

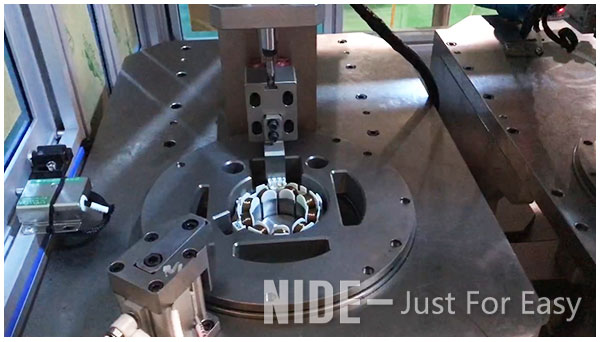

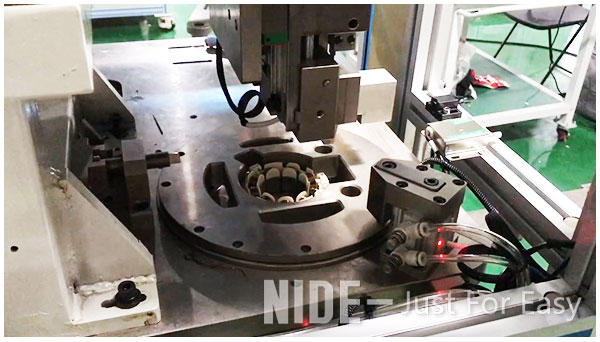

Picture show

35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine

35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine

35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine

35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine

35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine

Besides paper inserting machine, we also provide insulation material with different dimensions of insulation material as per customer's requirement.There are different insulation material, DMD B/F class, Polyester film Class E, Red Vulcanized Fiber, Class A.

35mm Stator Crimp Wire Terminal Connector Winding Inserting Machine
