Automatic Air Conditioner Motor Stator Winding Machine
Automatic Air Conditioner Motor Stator Winding Machine
Automatic Air Conditioner Motor Stator Winding Machine
Automatic Air Conditioner Motor Stator Winding Machine
Automatic Air Conditioner Motor Stator Winding Machine
Automatic Air Conditioner Motor Stator Winding Machine
Automatic Air Conditioner Motor Stator Winding Machine
Automatic Air Conditioner Motor Stator Winding Machine
Specifications
Brand Name :
Nide
Model Number :
RXL2-160M
Certification :
None
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
120 sets per year
Delivery Time :
50 working days
Packaging Details :
Wooden case suitable for sea transportation
Machine size :
middle size
Automation type :
Automatic
Certificate :
CCC
Condition :
New
Customized service :
Available
Name :
Automatic stator winding machine
Application :
air conditioner motor
Working stations :
2
Description

Automatic Air Conditioner Motor Stator Winding Machine

The stator winding machine is suitable for air conditioner motor, washing machine motor, compressor motor, fan motor, pump motor etc.

Stator coil winding process

Continuous/discontinuous coil winding method.

Mature and advanced technology, reliable quality, easy operation and maintenance.

4 stator winding working stations.

Meet the 2poles,4poles,6poles coil winding.

Main phase and auxiliary phase can be wound simultaneously.

Suitable for high production capacity stator coil winding

Auto skip, auto cutting, auto indexing could be completed at one time,

Parameter can be set in HMI, winding tension is adjustable,

(3)Technical parameter

Product name: Motor stator winding machine
Wire diameter: 0.18~1.2mm
Max stator OD: 200mm
Max stack height: 160mm
Flyer diameter: 400mm
Max RPM: 1800RPM
Air source: 0.6-0.8MPa
Winding station: 4
Winding head: 2
Power supply: 380V 50/60HZ 7.5KW
Dimension: (L)2600*(W)2200*(H)2200mm
Weight: about 2000KG

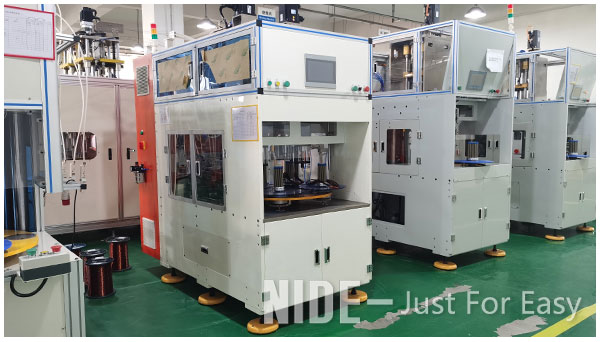

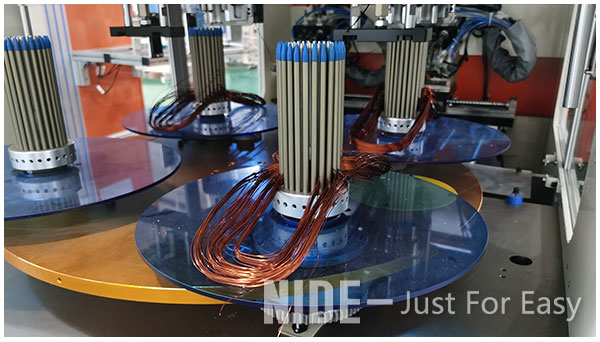

(4)Picture show

Automatic Air Conditioner Motor Stator Winding Machine

Automatic Air Conditioner Motor Stator Winding Machine

Automatic Air Conditioner Motor Stator Winding Machine

FAQ

1. How to confirm which motor stator winding machine model?

Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.

If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.

2. How to transport the stator winding machine?

By air or sea

3. How to operate the motor stator winding machines?If there is related training about operating the motor manufacturing machines?

Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.

4. What field is your machine suitable for?

Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
