Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Specifications
Brand Name :
Nide
Model Number :
QW1-250-300F
Certification :
None
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500 sets per year
Delivery Time :
45 working days
Packaging Details :
Wooden case suitable for sea transportation
frame :
horizontal
condition :
new
color :
customized
controlled :
PLC
stator OD :
MAX 300MM
Power :
380V
Description

The motor stator coil inserting machine is suitable for Large and medium-sized motor stators

The stators are too heavy to do loading and unloading.

We Using a horizontal structure. The change in structure doesn't affect the final inserting quality.

1. Stator coil inserting machine Feature

Can be customized accordingly

Manual loading and unloading

After insertion, no deformation of stator, lamination, or insulation paper

Easy for operation, No skilled operator required

Parameter of different models can be edited, modified and displayed

Quick and easy readjustment for other types of stator

Copper wire and aluminium wire are both applicable

2. Stator coil inserting machine Application

This stator coil inserting machine is suitable for large and medium-sized electric motor, induction motor, 3 phase motor.

3. Stator coil inserting machine Main Technical Parameter:

Product name: Electric Motor stator coil winding inserting machine
Stator ID: φ100-φ150
Stator OD: ≤250mm
Stator height: 80-300mm
Appropriated wire diameter: 0.2~1.2mm
Slot number range: 24~48slot
Power: 380V 50- 60HZ 3KW
Dimension: 3210*820*1600mm
Weight: 800KG

The parameters of the stator coil inserting machine can be adjusted.

We can customize the machine according to customer needs.

Please feel free to contact us if you need it.

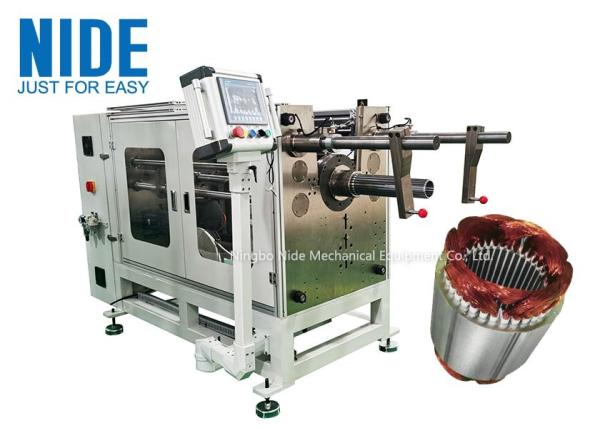

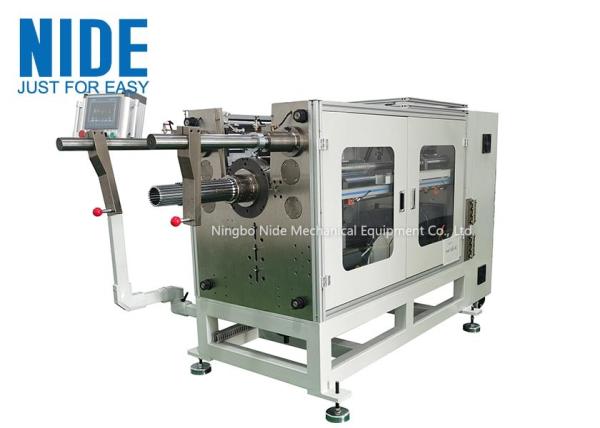

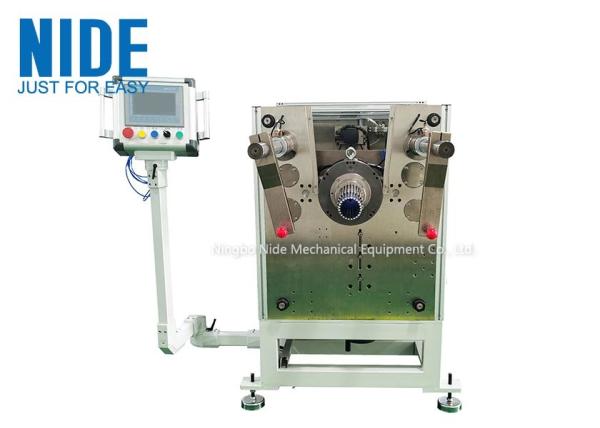

4. Stator coil inserting machine Picture Show

Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor

Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor

Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor

The Horizontal Type Stator Winding Inserting Machine working video
