Starter Armature Commutator Motor segmented commutator

Starter Armature Commutator

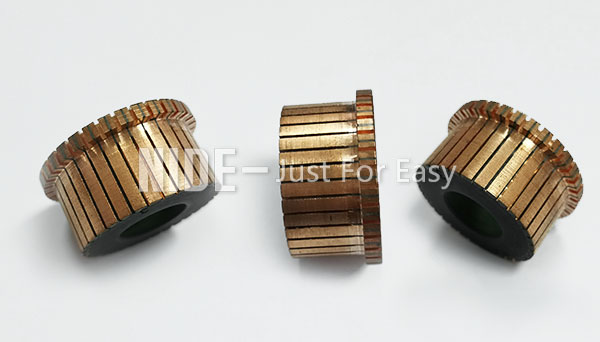

The segmented commutator is suitable for automobile starter. It is found in the back of the motor's housing and forms part of the armature assembly. Usually round and segmented, its main function is to transfer current to the armature in the required sequence. That is made possible by the segments or copper bars on which the motor brushes slide.

Each segment or bar on the commutator conveys current to a particular coil. To enhance efficiency, the contact surfaces are made from a conductive material, usually copper. The bars are also separated from each other using a non-conductive material such as mica. This helps prevent shorting.

Commutator Parameters

Commutator Picture

NIDE is a company that specializes in providing motor manufacturing solutions. We have completed motor assembly lines, stator manufacturing lines, and armature rotor manufacturing lines, covering brushless DC motors, induction motors, series motors, AC motor, hairpin motors, new energy motors, etc. At the same time, we provide various motor manufacturing accessories. Our motor components have more than 1,200 types, such as commutators (commutators), carbon brushes, insulating paper, magnets, thermal protectors, etc. The products are widely used in automotive motors and household appliances. Motors, power tools, industrial motors and other motors provide supporting services for the global motor industry market.

Information needed for commutator inquiry:

It will be better if customer could send us detailed drawing including below information.

1. Commutator dimension: OD, ID, total height, and copper height, bar number.

2. Commutator type: hook type, raiser type or planner

3. Copper material: Agcu/ Cu

4. Commutator applications

5. Required quantity

6. Copper bush needed or not

7. Other technical requirement.

If possible, it will better if customer could send us samples.

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
