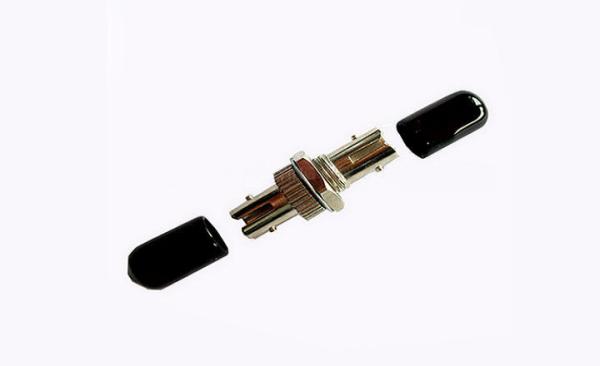

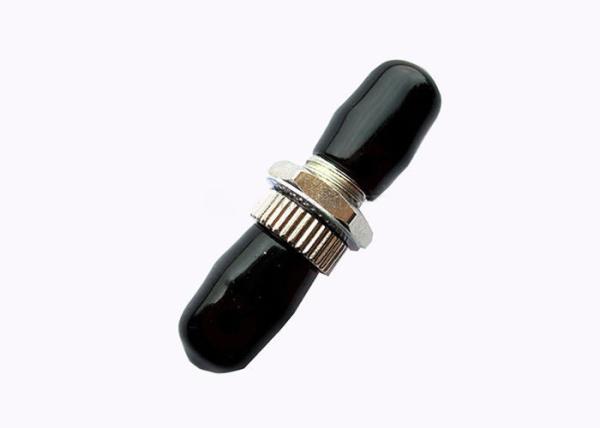

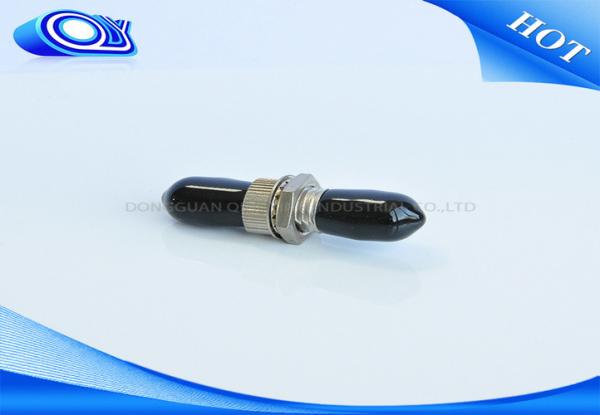

ST / UPC SM SX Fiber Optic Adapter With Metal Housing
ST / UPC SM SX Fiber Optic Adapter With Metal Housing
ST / UPC SM SX Fiber Optic Adapter With Metal Housing
ST / UPC SM SX Fiber Optic Adapter With Metal Housing
ST / UPC SM SX Fiber Optic Adapter With Metal Housing
ST / UPC SM SX Fiber Optic Adapter With Metal Housing
ST / UPC SM SX Fiber Optic Adapter With Metal Housing
ST / UPC SM SX Fiber Optic Adapter With Metal Housing
Specifications
Brand Name :
Qingying or QY
Model Number :
ST Fiber Optic Adapter
Certification :
ISO9001, RoHS
Place of Origin :
Dongguan China
MOQ :
10pcs for minium order
Price :
negotiation
Payment Terms :
Western Union, T/T, PayPal
Supply Ability :
50000pcs per week Adapter
Packaging Details :
PE bag or customized package & cartons
Delivery Time :
3-7 working days
Grade :
Standard, Premium
Insertion Loss :
S≤0.2dB, P≤0.1dB
Repeatibility :
≤0.1dB
Interchangeability :
≤0.2dB
Operating Temp. :
-25℃ - +70℃
Durability :
≥1000 times
Fiber Count :
Simplex
Application :
FTTH FTTB FTTX Network,Network,Telecommunication/Fiber Optic CATV/Multimedia
Color :
Sliver
Description

ST / UPC SM SX Fiber Optic Adapter With Metal Housing

ST / UPC SM SX Fiber Optic Adapter With Metal Housing

Description:

Fiber Optic Adaptor(also called coupler, or flange coupler)is the device to couple two connectors together. QY's adaptor adopts a high precision alignment sleeve to keep high reliability and better performance. The color of housing is available in different colors or specified by the customer, and with options for flange or flangeless body.

Applications:

  • Fiber Optic Telecommunications
  • LAN (Local Area Network)
  • FTTH (Fiber To The Home)
  • CATV&CCTV System
  • High-speed transmission systems
  • Fiber optic sensing
  • Industrial, Mechanical, and Military

Features:

  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Precision anti-rotation key and corrosion resistant body
  • UL-rated plastic housing
  • Telcordia style boots
  • Free-floating ceramic ferrule
  • Zirconia sleeves or Phosphor bronze sleeves
  • D-shaped easily installs into panel mount
  • RoHS compliant

Specification

Item Name

Unit

 FC/UPC Optic Fiber Adapter
Grade S (Standard) Grade P (Premium)
Insertion Loss dB ≤0.2 ≤0.1
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Fiber Count --- Simplex, Duplex
