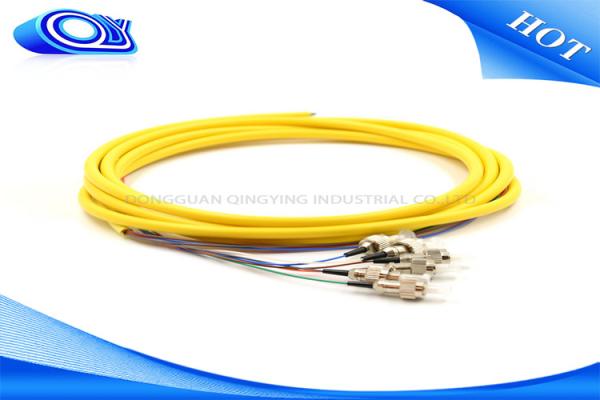

FC Connector 6 Core OM3 Fiber Patch Cable Custom Length Fiber Optic Patch Cables
FC Connector 6 Core OM3 Fiber Patch Cable Custom Length Fiber Optic Patch Cables
Specifications
Brand Name :
Qingying
Model Number :
FC 6 Core OM3 Fiber Optic Patch Cord
Certification :
IEC 60794-2-10/11
Place of Origin :
China Dongguan
MOQ :
20pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50000pcs per week
Packaging Details :
2000 Piece/Pieces per Day Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 12 days in 20,000pcs for safe delivery lead time. The faster delivery could be negotiable.
Name :
OM3 fiber optic cable
Fiber Type :
OM1(62.5/125),OM2(50/125)
Connector Type: :
FC
Cable Length :
1/1.5/3/5/10/20m or custom
Catagory :
Fiber Optic Patch Cord
Cable Outer Diameter: :
0.9/2.0/3.0mm
Description

FC 6 Core OM3 Fiber Optic Patch Cord with the Return loss 35dB

Product Description

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.

Technical specifications:

Item Unit LC/SC/FC/ST Fiber Patch Cord
SM MM
Fiber Diameter um 9/125 65.5/125 50/125
Endface Type PC UPC APC PC PC
Insertion Loss db ≤0.2 ≤0.15 ≤0.2 ≤0.1 ≤0.1
Return Loss db ≥45 ≥50 ≥60 - -
Insert-pull Test db ≤0.2 ≤0.2 ≤0.3 ≤0.15 ≤0.15
Interchangeability db ≤0.1 ≤0.1 ≤0.15 ≤0.1 ≤0.1
Temperature Range ℃ -40~+80



Features:

---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Product packing details

Products Packing
Inner packing 1piece per plastic bag
Min order 100 pieces
100 pieces weight 2-3kg
Outer packing Carton box



Applications:

Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
