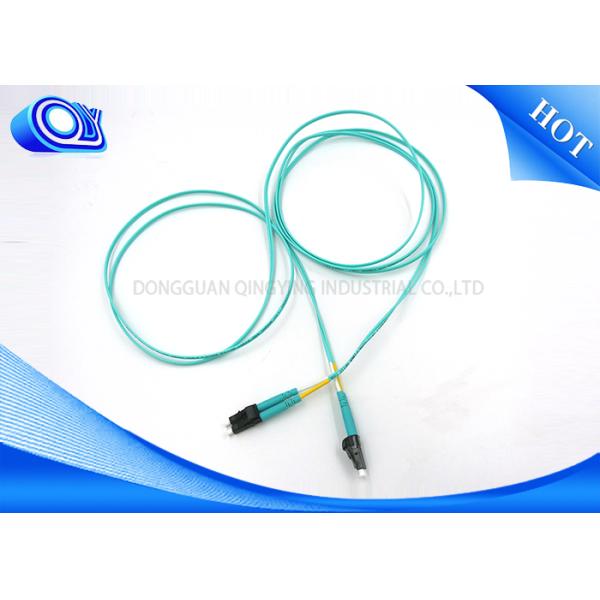

LC - LC Multimode Fiber Optic Cable
LC - LC Multimode Fiber Optic Cable
Specifications
Brand Name :
Qingying or QY
Model Number :
3m 50/125 Multimode Fiber Optic Patch Cord
Certification :
IEC 60794-2-10/11
Place of Origin :
Dongguan China
MOQ :
20pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50000pcs per week
Packaging Details :
2000 Piece/Pieces per Day Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 12 days in 20,000pcs for safe delivery lead time. The faster delivery could be negotiable.
Jacket :
PVC/LSZH
Fiber Type :
OM1(62.5/125),OM2(50/125)
Ferrule Endface: :
UPC/PC
Connector Type: :
LC-LC
Cable Length :
1/1.5/3/5/10/20m or custom
Catagory :
Fiber Optic Patch Cord
Cable Outer Diameter: :
0.9/2.0/3.0mm
Model Name :
3m 50/125 Multimode Fiber Optic Patch Cord Communication Equipment Manufacture
Description

3m 50/125 Multimode Fiber Optic Patch Cord Communication Equipment Manufacture

Product Description

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.

Product Specifications :
ParameterUnitFC, SC, LC/ Armoured fiber patch cordST, MUMT-RJ, MPOE2000
SMMMSMMMSMMMSM
PCUPCAPCPCPCUPCPCPCUPCPCPCAPC
Insertion loss(typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3
Return lossdB≥45≥50≥60≥30≥45≥50≥30≥45≥50≥35≥55≥75
Operating wavelengthnm1310, 15101310, 15101310, 15101310, 1510
ExchangeabilitydB≤0.2≤0.2≤0.2≤0.2
VibrationdB≤0.2≤0.2≤0.2≤0.2
Operating temperature°C-40~75-40~75-40~75-40~75
Storage temperature°C-45~85-45~85-45~85-45~85
Cable diametermmΦ3.0, Φ2.0, Φ0.9Φ3.0, Φ2.0, Φ0.9Φ3.0, Φ2.0, Φ0.9φ3.0, φ2.0, φ0.9

Features:

---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Applications:

Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
