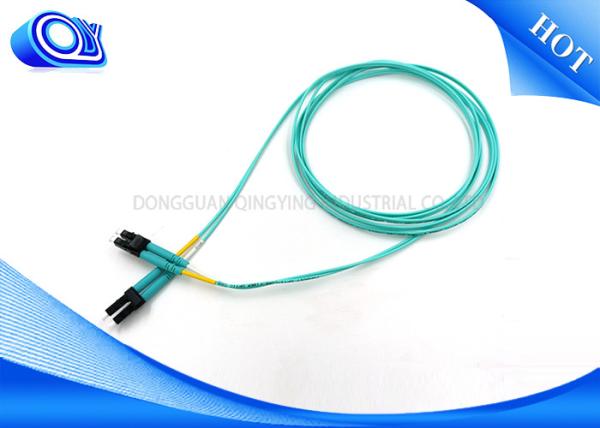

50 / 125 Multimode Fiber Optic Patch Cord Low Insertion Loss For Communication Equipment
50 / 125 Multimode Fiber Optic Patch Cord Low Insertion Loss For Communication Equipment
Specifications
Brand Name :
Qingying or QY
Model Number :
50/125 Multimode
Certification :
IEC 60794-2-10/11
Place of Origin :
Dongguan China
MOQ :
20pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50000pcs per week
Packaging Details :
2000 Piece/Pieces per Day Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 12 days in 20,000pcs for safe delivery lead time. The faster delivery could be negotiable.
Jacket :
PVC/LSZH
Fiber Type :
OM1(62.5/125),OM2(50/125)
Ferrule Endface: :
UPC/PC
Connector Type: :
LC-LC
Cable Length :
1/1.5/3/5/10/20m or custom
Catagory :
Fiber Optic Patch Cord
Cable Outer Diameter: :
0.9/2.0/3.0mm
Model Name :
50 /125 Multimode Fiber Optic Patch Cord
Description

50/125 Multimode Fiber Optic Patch Cord Communication Equipment

Product Description
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. and so it is the perfect connections between value and performance.
The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.
Available in a large range of colors and lengths, we have the cable that can fit every situation. And well patch cords assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.)
There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

Product Specifications :
Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9

Features:

--- Good durability
--- Good exchangeability
--- High temperature stability
--- Low insertion loss and back reflection loss
--- Superior Quality Standard PC/UPC/APC Polishing
--- Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Applications:

Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
