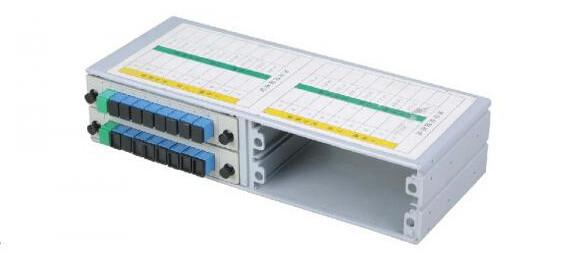

Optical Fiber Splitter For FTTH , Passive Devices Fiber Optic Coupler Splitter
Optical Fiber Splitter For FTTH , Passive Devices Fiber Optic Coupler Splitter
Specifications
Brand Name :
Qingying or QY
Model Number :
FTTH　Optical PLC splitter with 4 Slots Optical Branching Installation Box
Certification :
CE,ROHS,ISO,SGS,
Place of Origin :
China Dongguan
MOQ :
100 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per week
Packaging Details :
packing in Wooden drums, Polywooden drums or other drums according to clients' requests .
Product Name :
FTTH　Optical PLC splitter with 4 Slots Optical Branching Installation Box
Package Size :
30X20X 15 CM
Operation Wave Length :
1260--1650
Grinding method: :
PC.UPC.APC
Certificates :
CE,ROHS,ISO,SGS,
Modes: :
single-mode, multi-mode
Branch number :
1 × 2,1 × 4,1 × 8,1 ×16,1 × 32,1 × 64 etc.
Fiber connector: :
FC / PC, FC / APC, FC/UPC,SC / PC, SC / APC, SC/UPC,ST / PC, ST / APC,LC/PC,LC/APC,LC/UPC
Description

FTTH Optical PLC splitter with 4 Slots Optical Branching Installation Box

Ports 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) Max(P/S) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.8 20.5/21.0
Loss Uniformity (dB) Max 0.6 0.6 0.8 1.2 1.5 2.5
PDL (dB) Max 0.15 0.15 0.25 0.3 0.3 0.3
Return Loss (dB) Min UPC:50 APC:55
Directivity (dB) Min 55
Standard Input Fiber Bend Insensitive SM Single Fiber(ITU G.657A)
Standard Output Fiber Bend Insensitive SM Ribbon Fiber(ITU G.657A)
Standard Output Color Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B)
Max. Optical Power(mw) 300
Humidity Range(rh) 5%~85%
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85
Connector Options FC/SC/LC/ST/MU
Packaging Options Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount

*Telcordia GR-1221-CORE&G-1209-CORE Compliant.
*Premium spec available upon request. (P/S: Premium Grade/Standard Grade)
*Typical value at +23℃ without connectors losses.

The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.
