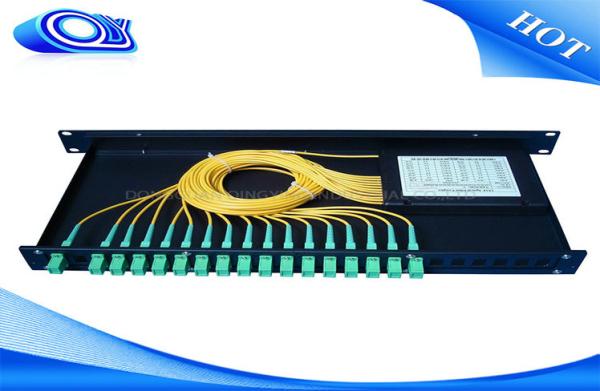

Indoor Waterproof 1 X 32 Inserting Optical PLC Splitter Total Enclosed Structure
Indoor Waterproof 1 X 32 Inserting Optical PLC Splitter Total Enclosed Structure
Specifications
Brand Name :
Qingying or QY
Model Number :
Indoor waterproof 1X32 Inserting
Certification :
CE,ROHS,ISO,SGS,
Place of Origin :
Dongguan China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500pcs per week
Delivery Time :
8-15 work days
Packaging Details :
Standard packaging or Custom size
Product Name :
Optical Cable Splitter
Max.Capacity :
48Cores
Grinding method: :
PC.UPC.APC
operation temperature :
-40~85
Storage Temperature: :
-40℃~+70℃
Fiber connector: :
FC / PC, FC / APC, FC/UPC,SC / PC, SC / APC, SC/UPC,ST / PC, ST / APC,LC/PC,LC/APC,LC/UPC
Box Color: :
grey telecom distribution box
Description

Indoor waterproof 1X32 Inserting fiber optical splitter 32 cores splitter

The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.

Performance:

1. Fire-retardant(availble), waterproof, shock-proof, breakage-proof

2. Protect the external cable from stretching, distortion, and other physical effects

3. Used under -35 °C - +60 °C natural environment.

4. Good sealing performance

5. IP56 outdoor telecom cabinet

Feature:

• Total enclosed structure, be in nice shape
• Material: PC+ABS, wet proof , waterproof, anti--aging
• Clamping for feeder cable and drop cable, fiber splicing , fixation, storage, distribution...all in one
• Cable, pigtail , patch cord are running through own path without disturbing each other, cassette type SC adapter installation, easy to maintain and extend the capacity
• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Application:

The distribution box is used as a terminal point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box ,and meanwhile it provide solid protection and management for the FTTX net work building.

Outline

Name FTTH Box
Material PC,or ABS
Color Grey Box
Feature Anti-UV, Ultra violet resistant and rainfall resistant;Wall and pole mountable;
Use Widely used in FTTH access network,Telecommunication Networks.
Sample Free sample available
MOQ 100 piece
FOB price ~25 USD
Supply Ability 10000 pieces/week
Delivery Date 10~15 working days
Trade Term FOB,CNF,CIF
Freight Air,Sea,Express( Door to Door Shipping DHL,FEDEX,TNT,UPS)
Payment Term T/T,Paypal,Western Union
Packing 5pcs in a carton or customized request

Parameters 2×2 2×4 2×8 2×16 2×32 2×64 2×128
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB) (P/S Grade) 4.0 7.6 11.0 14.4 17.5 21.0 24.5
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.35 0.4 0.4
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.4 0.5 0.5 0.5 0.5 0.5
Temperature Stability (-40~85 °C)(dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Device Dimension (mm) 40×4×4 50×4×4 50×4×4 50×7×4 60×7×4 N/A N/A
Module Dimension (mm) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18 140×115×18
Mini-Module Dimension (mm) 60×7×4 60×7×4 60×7×4 60×12×4 80×20×6 N/A N/A
