TPU Jacket Military Grade Fiber Optic Cable Single Mode For Video Transmitting
TPU Jacket Military Grade Fiber Optic Cable Single Mode For Video Transmitting
TPU Jacket Military Grade Fiber Optic Cable Single Mode For Video Transmitting
TPU Jacket Military Grade Fiber Optic Cable Single Mode For Video Transmitting
Specifications
Brand Name :
Qingying or QY
Model Number :
Mobile Cable/ Military Fiber Cable/ Optical Field Cable
Certification :
ISO 9001 2015
Place of Origin :
China Dongguan
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :

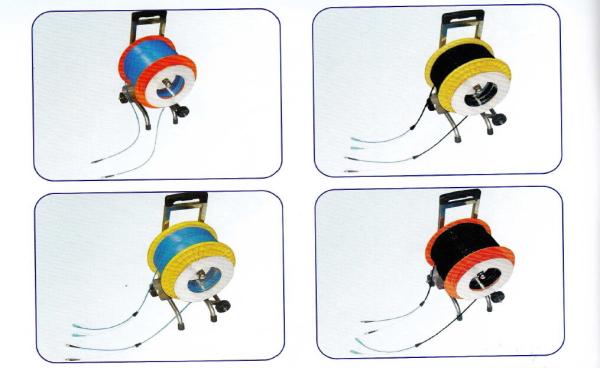

20000 Meter/Meters per Week Portable armored cable for video transmiting & broadcast vehicle
Delivery Time :
15 days after deposit
Packaging Details :
Package : 2KM to 4KM Per Reel.
Product name :
military fiber optic cable
Application :
video transmiting & broadcast vehicles trailers
Cable Diameter: :
5mm/7mm/9mm
Fiber count: :
1~12 Cores
OEM :
Support
Jacket: :
TPU
Package : :
2KM to 4KM Per Reel.
Application: :
Military Single Mode Outdoor Fiber Optic Cable
Description

Mobile Cable/ Military Fiber Cable/ Optical Field Cable

Technical Data

Item Single mode Multi mode
Splicing Type UPC APC PC
Insertion Loss <or=0.3dB <or=0.2dB <or=0.3dB
Reture Loss >or=45dB >or=55dB >or=35dB
Repeatability <or=0.1dB <or=0.1dB <or=0.1dB
Temperature -40/+80

Specifications&Performances

Cable
Count		 ITEM CABLE
OD.mm(a)		 S.S.T.
OD.mm(b)		 T.B.O.F.
OD.mm(C)
4F 4.5MM Φ4.5±0.2 Φ2.4±0.02 Φ0.5
6F 4.5MM Φ4.5±0.2 Φ2.6±0.03 Φ0.5
8F 5.0MM Φ5.0±0.2 Φ2.8±0.05 Φ0.5
10F 5.0MM Φ5.0±0.25 Φ3.0±0.05 Φ0.5
12F 5.5MM Φ5.5±0.25 Φ3.2±0.05 Φ0.5
24F 7.0MM Φ7.0±0.3 Φ4.3±0.05 Φ0.5

Cable
Count		 ITEM CABLE OD.
mm(a)		 CABLE
WEIGHT
(kg)		 MAXIMUM TENSILE BEND RADIUS* L.P.
N/100mm
S.T. L.T. Dyn. Sta.
4F 4.5MM Φ4.5±0.2 26.5 800 400 70 35 3000
6F 4.5MM Φ4.5±0.2 38.5 1000 500 100 50 3000
8F 5.0MM Φ5.0±0.2 33.0 1000 501 100 50 3000
10F 5.0MM Φ5.0±0.25 36.0 1000 502 120 60 3000
12F 5.5MM Φ5.5±0.25 39.0 1200 600 150 75 3000
24F 7.0MM Φ7.0±0.3 54.0 1500 750 170 85 3000
TPU Jacket Military Grade Fiber Optic Cable Single Mode For Video Transmitting
