Specifications
Brand Name :
Qingying or QY
Model Number :
QSC60K1-UPC
Certification :
IEC or ISO9001 2015
Place of Origin :
Dongguan China
MOQ :
100 Piece/Pieces SC PC UPC Fast Fiber Optic Connector
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Piece/Pieces per Day Fast Connector protective box
Delivery Time :
1-7 working days
Packaging Details :
Package details: 45 X 25 X 24CM:(1000PCS)
Product Name :
Fast Connector SC UPC connector
Fiber type :
Single mode
Package Style :
10pcs/small bag carton packaging
Color : :
Bule
Package details: :
45 X 25 X 24CM:(1000PCS)
Type: :
Outdoor or Indoor
Application :
FTTH,FTTX Network
Insertion loss :
0.3dB
Description

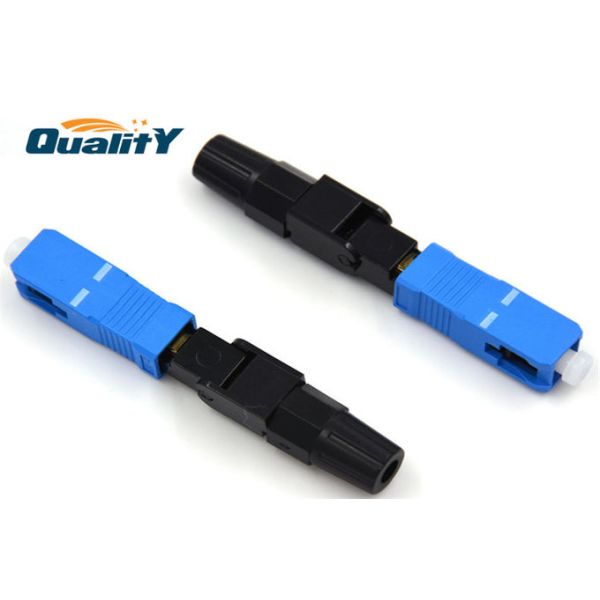

Sc Fast Connector Insertion Loss 0.2dB Fiber Optic Connector Assembly / Fiber Optic Fast Connectors

Features

1.Factory-installed fiber stub

2.No epoxy or polishing required

3.Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage

4.Eliminates cable excess length and pigtail splicestorage

5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable

Specification

Fast Connector Specification
Mode SM MM
Polish UPC APC PC
Insertion Loss Typical ≤0.2dB ≤0.25dB
Maximum ≤0.5dB
Return Loss ≥50dB ≥60dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

FAQ:

1,Can I get some samples of FTTH fiber protection box for optical skin line cable heat shrinkable tubing sleeves?
Yes, Sample order is available for quality check and market test .And for tiny order, you just to pay the express cost.

2. What’s delivery time of optical fiber protective box?
It usually takes about 5-7 working days

3. What’s your payment terms of shrinakble tubing splicing sleeves?

We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc, optional

4. What’s your warranty terms ?
We offer 12 months warranty time .
