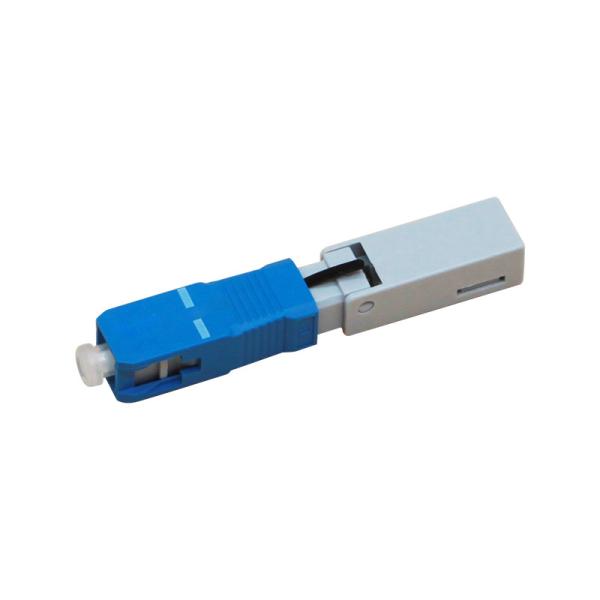

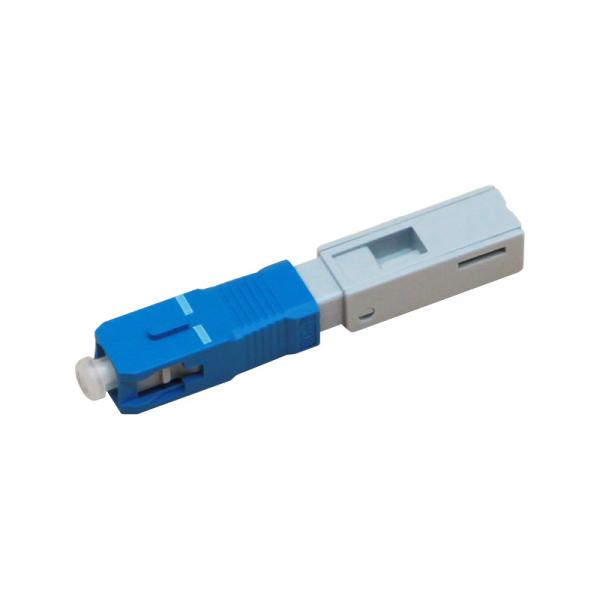

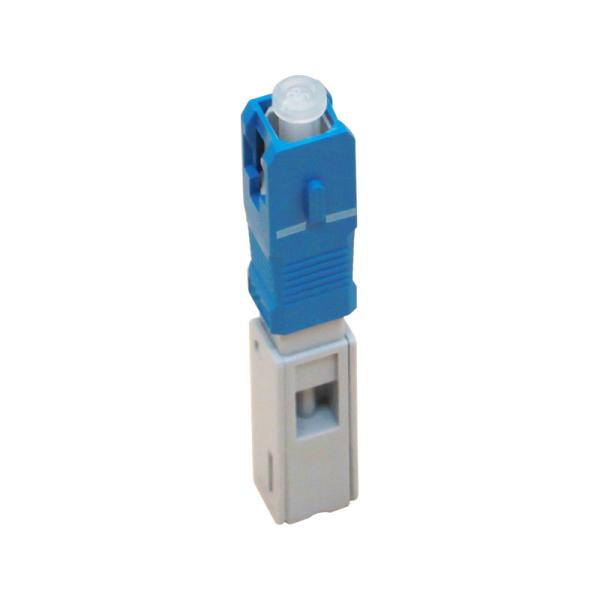

Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector
Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector
Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector
Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector
Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector
Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector
Specifications
Brand Name :
Qingying or QY
Certification :
IEC or ISO9001
Place of Origin :
China Dongguan
MOQ :
20 Piece/Pieces SC UPC Fast Fiber Optic Connector
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
20000 Piece/Pieces per Week SC UPC Fast Fiber Optic Connector
Delivery Time :
7 Working Days
Packaging Details :
Package details: 46 X 33 X 23 CM:(5000PCS)
Color :
Blue
OEM :
Support
Application :
CWDM System/PON Networks/CATV Links
Insertion loss :
≤0.3dB
Return loss :
≥40dB
Fiber type :
SM
Connector :
Fast Connector SC APC
Repeatability :
≥5 times
Description

Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector

Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector

Products Description

Field Installable Connector (FIC, also called Fast Connector) is an innovative field installable optical fiber connector designed for simple and fast field termination of single fibers. Without using additional assembling tools, the field assembly connector can be quickly and easily connected to the drop cable and indoor cable, which saves a lot of required termination time. It is specially designed with a patented mechanical splice body that includes a factory-mounted fiber stub and a pre-polished ceramic ferrule. Field assembly connectors enable faster and on-site installation of 250µm, 900µm, 3.0mm, and 1.6mm x 2.0mm, 2.0mm x 3.0mm cable type connectors even when the user has no access to power. The whole installation process only takes about 2 minutes, which greatly improves the working efficiency.

Features

· Field-installable, cost-effective, user-friendly
· No requirement for epoxy and polishing
· Quick and easy fiber termination in the field
· No need for a fusion splicer, power source, and tool for pressure
· Visual indication of proper termination
· Suitable for all standard OS1 and OS2 fiber cables

Application


· Connections at the desk for LAN environments
· Optical access network
· Fiber to the Subscriber (FTTX) applications
· Patch panels
· Direct equipment termination

Specifications

SC/UPC Field Installable Connector
Item Name Unit Parameter
Fiber Type um 9/125
Polishing -- UPC
Insertion Loss dB ≤0.3
Return Loss dB ≥40
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Reusability times ≥5
Tensile Strength N ≥50
