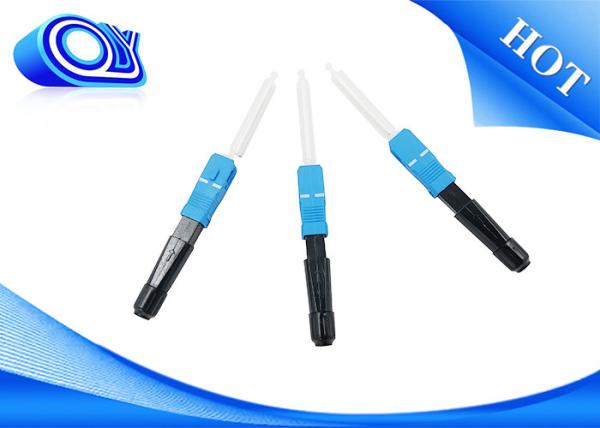

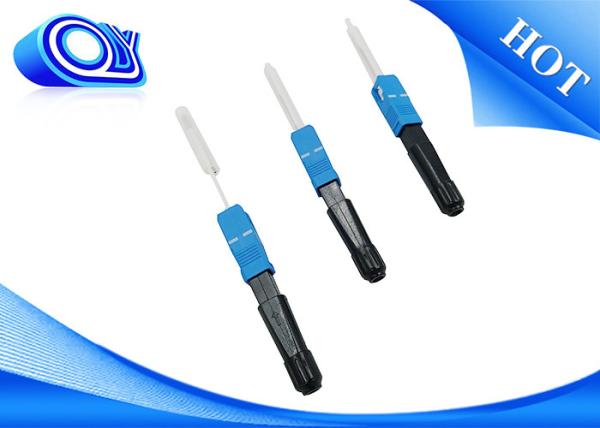

Cold Fusion Fiber Optic Quick Connector SC APC Fiber Connector SM MM SOC / Fiber Optic Fast Connectors
Cold Fusion Fiber Optic Quick Connector SC APC Fiber Connector SM MM SOC / Fiber Optic Fast Connectors
Cold Fusion Fiber Optic Quick Connector SC APC Fiber Connector SM MM SOC / Fiber Optic Fast Connectors
Cold Fusion Fiber Optic Quick Connector SC APC Fiber Connector SM MM SOC / Fiber Optic Fast Connectors
Specifications
Brand Name :
Qingying or QY
Model Number :
SC UPC hot melt type optical fiber fast connector for cold fusion connector
Certification :
IEC or ISO9001 2015
Place of Origin :
China Dongguan
MOQ :
20 Piece/Pieces
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 Piece/Pieces per Week 0.3db FTTH Connector SC fast connectors For Fiber Cable
Delivery Time :
12 working days
Packaging Details :
Package details: 46 X 33 X 23 CM:(5000PCS)
Product Name :
SC UPC hot melt type optical fiber fast connector for cold fusion connector
Selling Units :
Single item
Package Style :
10pcs/small bag carton packaging
Color : :
blue
Package details: :
46 X 33 X 23 CM:(5000PCS)
OEM :
Support
Options :
OFNR flame retardant
Application :
CWDM System/PON Networks/CATV Links
Description

Cold Fusion Fiber Optic Quick Connector SC APC Fiber Connector SM MM SOC / Fiber Optic Fast Connectors

Compared to mechanical optical fast connector, this new practical connector save V-groove mechanical connector maintenance and can improve the span life of welding point of connector and reduce maintenance cost.

Specifications

Fiber Type SM/MM
Surface polishing SC/APC/UPC
Color Green/Blue
insertion loss 0.3dB (max 0.5dB)
return loss ≥50dB
joint endurance 10Times
Applications 2.0/3.0 or FTTH patch cord
Fiber Diameter 125um
Tensile Strength >20N
Lock Strength 0.2dB
Temperature Cycle 0.3dB
Virbration 0.2dB
Temperature -40℃~+80℃

Qingying Fusion Splice-on Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion.

Qingying factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap.
