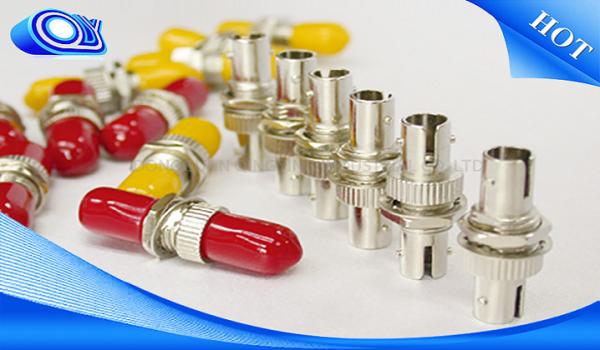

CATV Simplex / Duplex Fiber Optic Adapter ST APC UPC SM / MM
CATV Simplex / Duplex Fiber Optic Adapter ST APC UPC SM / MM
Specifications
Brand Name :
Qingying or QY
Model Number :
ST APC UPC SM/MM simplex /duplex Fiber Optic adapter
Certification :
ISO90012015
Place of Origin :
Dongguan China
MOQ :
10pcs for minium order
Price :
negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
25000pcs per week
Packaging Details :
PE bag or customized package & cartons
Model Numbe :
ST APC UPC SM/MM simplex /duplex Fiber Optic adapter
Connector Type: :
ST
Package Size： :
46 X 33 X 23 CM:(5000PCS)
Insertion loss: :
< 0.2DB
Durability: :
>1000 mating times
Operation Temperature :
-40 ~+75 degree
Color :
Green
Sleeve Material :
Zirconia
Channels number: :
Simplex,Duplex
Description

ST APC UPC SM/MM simplex /duplex Fiber Optic adapter

Fiber Optic Adapter(also known as fiber flange), is aligned with the connection of fiber optic
transmission components, the ends can be inserted into different types of fiber optic connector
interfaces to achieve FC, SC, ST, LC, MTRJ, MPO, E2000 conversion between different
interfaces, widely used in optical fiber distribution frame (ODF), fiberoptic communications
equipment, instruments, etc., superb performance, stable and reliable.



Feature:

1, LC/SC/FC/ST Type Optional
2, UPC or APC Optional
2, SM or MM Optional
3, With/Without flange Optional
4, Simplex , Duplex or Quad Optional
5, Zirconia Sleeve ,Compact design
6, Low insertional loss, High return loss
7, Comply with IEC, Telcordia GR 326 and JIS standard

Application:

CATV
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networks

Mating sleeve fiber optic adapters allow users to couple from one connector type to another same type. LC/SC/FC/ST Fiber Optic Adaptors are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. LC/ST/SC/LC Optical Adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.

Factory Scale:
Total Area of: 8000 square meters
Factory history: 10 years
Production Staff: 60 to 100
QC Staff: 10 to 12
R&D Staff: 5 to 10

Certificates:
ISO9001:2015
SGS
RoHS
CE

Logistics Ability:
Arrange the Mixed logistical for Election delivery as By Air and By Sea,
over 10 years’ experience for logistical arrange.

Features;
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability

Delivery Time:
Material Preparation Time: 3 days (or inventory)
Production & Assembly Time 7 days
Testing & Packaging Time: 2 days
Total Delivery Time: 12 days in 20,000pcs
for safe delivery lead time.
The faster delivery could be negotiable.

Applications:
1.Asynchronous Transmission Mode(ATM) Package for 5000PCS :
2.Passive optical networks (PON) Quick Connector Package dimensions :45 X 25 X 24 CM
3.Fiber to The Home (FTTH) Fiber optic adapter Package dimensions :46 X 33 X 23 CM
4.Local Area Networks (LAN)
5.Cable Television (CATV)
6.Test Equipment

CIV Assessment report (627K).pdf
