Outdoor / Armored Fiber Optic Patch Cable / 6 Core Armored Fiber Optic Cable
Outdoor / Armored Fiber Optic Patch Cable / 6 Core Armored Fiber Optic Cable
Specifications
Brand Name :
Qingying
Model Number :
Outdoor waterproof 6F unarmoured or armoured fiber optical Cable
Certification :
IEC 60794-2-10/11
Place of Origin :
Dongguan China
MOQ :
20pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50000pcs per week
Packaging Details :
Plastic box or according to customer's request
Fiber Type :
SM G657A2 or Customized
Colors :
Aqua,yellow ,blue or others
Connectors :
MTP/ MPO/ LC/SC Connectors
Cable Length :
1/1.5/3/5/10/20m or custom
Cable Outer Diameter: :
5mm/7mm/9mm
Insertion Loss: :
<0.3dB
Cable Diameter :
7mm
Options :
unarmoured or armoured
Outer Sheach :
PE/LSZH/PU
Description

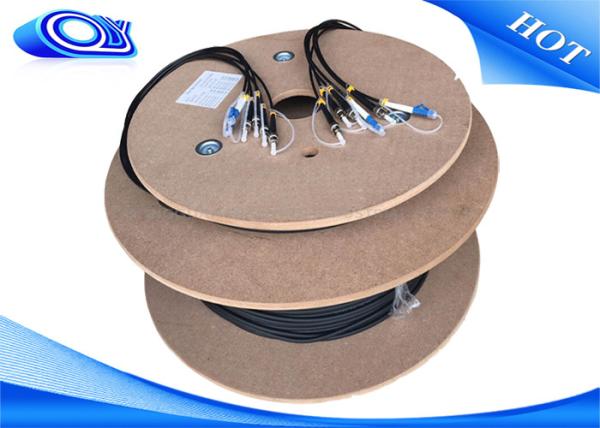

Outdoor / Armored Fiber Optic Patch Cable / 6 Core Armored Fiber Optic Cable

Product Description

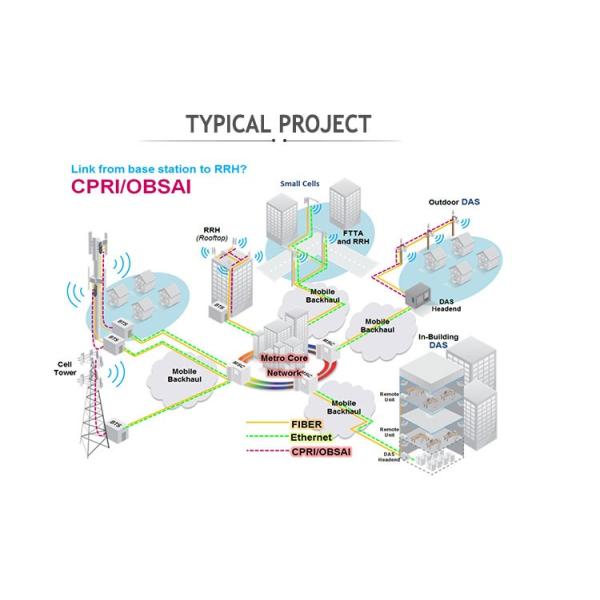

Armored outdoor fiber patch cord is used for the antenna,and base station far transmission.
Fiber optic patch cable is kind of indoor/outdoor patch cord, built on LSZH cable with 7.0mm diameter,
with water blocking aramid yarns and UV resistant black out jacket.
QY produces FULL ARMOURED patchcord for harsh environment,
especially for rodent resistance and bird resistance.

Technical specifications:

Item Unit LC/SC/FC/ST Fiber Patch Cord
SM MM
Fiber Diameter um 9/125 65.5/125 50/125
Endface Type PC UPC APC PC PC
Insertion Loss db ≤0.2 ≤0.15 ≤0.2 ≤0.1 ≤0.1
Return Loss db ≥45 ≥50 ≥60 - -
Insert-pull Test db ≤0.2 ≤0.2 ≤0.3 ≤0.15 ≤0.15
Interchangeability db ≤0.1 ≤0.1 ≤0.15 ≤0.1 ≤0.1
Temperature Range ℃ -40~+80

Features

1. Standad LC Duplex connector, can be connected with normal LC Adapters
2. Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
3. Wall seal design,easy operation, strong and durable.

4. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.

Application

Optical Networks
Testing / Measurement Instruments
Fiber To the Home
CATV System
Telecommunications


Outdoor / Armored Fiber Optic Patch Cable / 6 Core Armored Fiber Optic CableCIV Assessment report (627K).pdf
