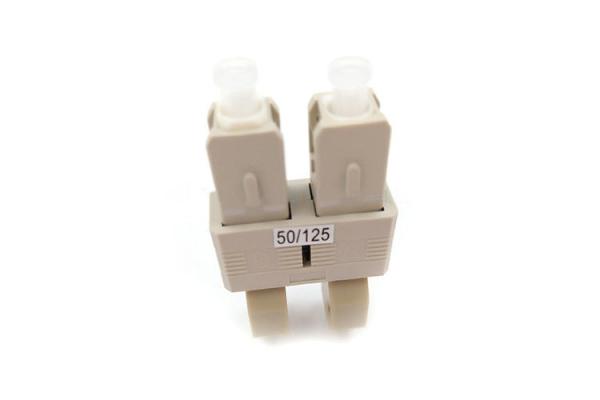

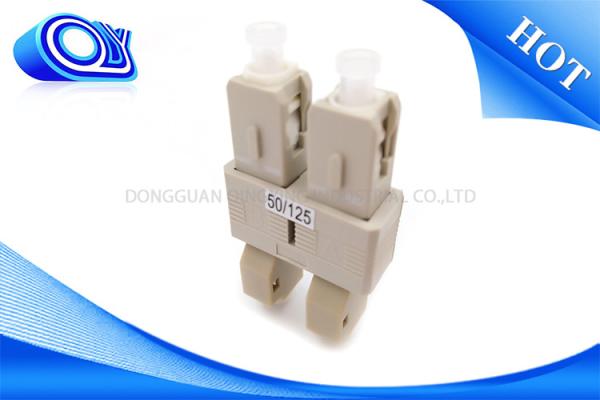

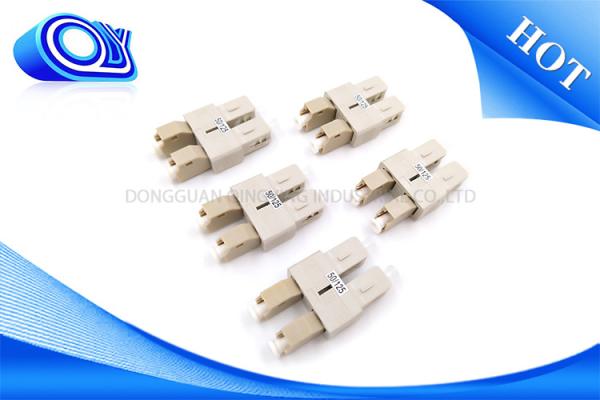

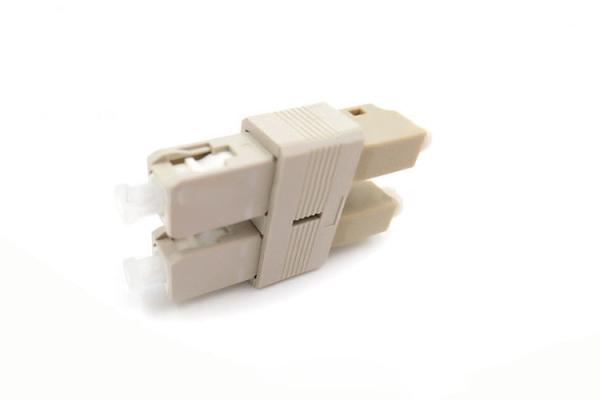

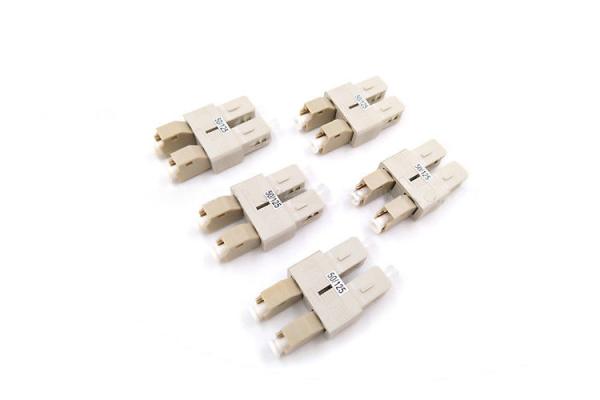

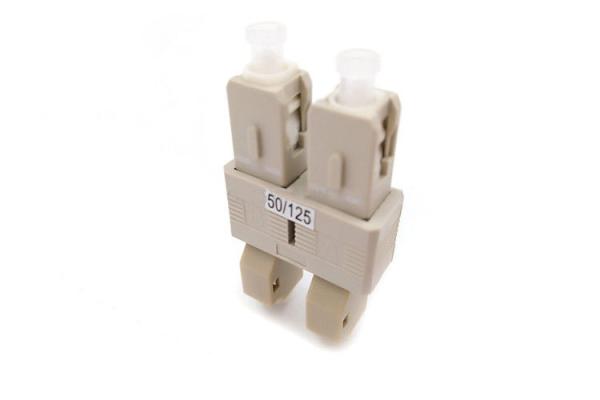

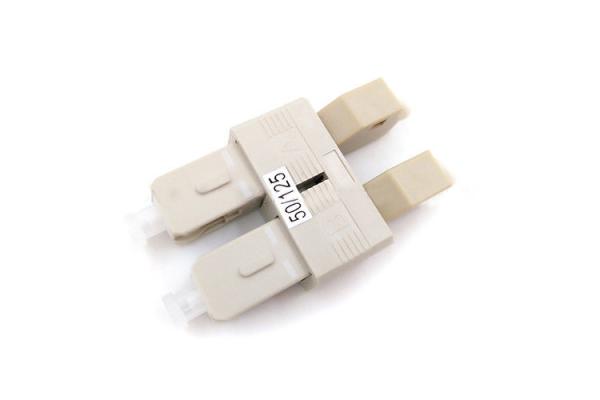

FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color
Specifications
Brand Name :
Qingying or QY
Model Number :
FTTH LC SC MM Fiber Optic Adapter 50/125
Certification :
ISO90012015
Place of Origin :
China Dongguan
MOQ :
10pcs for minium order
Price :
negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
2000pcs per week
Packaging Details :
FTTH LC SC MM Fiber Optic Adapter 50/125 PE bag or customized package & cartons
Model Numbe :
FTTH LC SC MM Fiber Optic Adapter 50/125
Connector Type: :
LC to SC
Package Size： :
46 X 33 X 23 CM (5000PCS)
Insertion loss: :
< 0.2dB
Durability: :
>1000 mating times
Operation Temperature :
-40 ~+75 degree
Color :
Grey
Sleeve Material :
Zirconia
Channels number: :
Simplex , Duplex
Repeatability :
≤ 0.1dB
Description

FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color

Description

Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.
They are available for use with either singlemode or multimode patch cables.

QY provides a full range of LC and SC fiber optic shutter adapters, Most of the LC and SC adapters can be with the shutters no matter they are SX, DX or Quad versions, there are removable shutters and integrated shutters for your choice.

FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color

Application

Local Area Networks(LANs)

Data processing networks

CATV

Telecommunication networks

Test equipment

Feature

1, With/Without flange Optional

2, Simplex , Duplex or Quad Optional

3, Zirconia Sleeve ,Compact design

4, Low insertional loss, High return loss

5, Comply with IEC, Telcordia GR 326 and JIS standard

6, LC/SC/FC/ST Type Optional

7, UPC or APC Optional

8, SM or MM Optional

The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.

Specificton

Item Name Unit SPECIFICATIONS
Grade S (Standard) Grade P (Premium)
△IL(Insertion Loss) dB ≤ 0.2 ≤ 0.1
Interchangeability dB ≤ 0.2
Repeatability dB ≤ 0.1
Durability times ≥ 1,000
Operating Temp. °C -25 ~ +70
Fiber Count Duplex

FTTH LC SC Multimode Duplex Hybrid Fiber Optical Cable Adapter Flange 50/125 Grey Color

FAQ

Q1: How do you guarantee the quality?
A1: We are an ISO certified factory
A2: We always start with pilot production to confirm everything complied with customers’ spec.
A3: In mass production, we have strictly IQC, IPQC, and FQC processes to confirm the quality of final products
A4: Before shipment, we also accept the customer's inspector to confirm the quality of goods.
Q2: Can you factory pass the factory audit?
A2: Yes, we welcome factory audit and we could pass it dut to we already are an ISO certified factory.
Q3: What's the product's lead time?
A3: It depends. For the sample below 5pcs, the lead time is usually 1 day, and for bulk production, the time will be 5-30 days
after receiving the deposit.
Q4: Can I have my own logo on the products?
A4: Yes, we welcome the custom-made logo. The logo could be stamped, lasered, and engraved.
Q5: What's your payment term?
A5: Our payment term is 30% deposit, and 70% balance before shipment.
Q6: Do you offer any other goods?
A6:Yes. Our factory mainly offers fast connectors, adapters, patch cords, attenuators, plc splitters, etc. However, we serve all
requests from customers with pleasure.
