Specifications
Brand Name :
Qingying or QY
Model Number :
LC Duplex Connector Blue Fiber Optic Patch Cord 3/5/10 Meter
Certification :
IEC 60794-2-10/11
Place of Origin :
Dongguan China
MOQ :
50pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
20000pcs per week
Packaging Details :
2000 Piece/Pieces per Day Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 12 days in 20,000pcs for safe delivery lead time. The faster delivery could be negotiable.
Name :
lc fiber optic patch cord
Fiber Type :
OM3
Color: :
aqua
Cable Length :
1/1.5/3/5/10/20m or custom
Application: :
Telecommunication
Cable Outer Diameter: :
0.9/2.0/3.0mm
Description

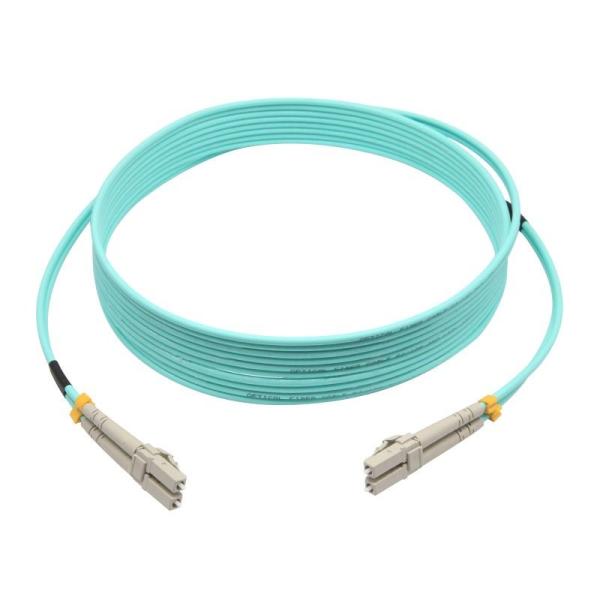

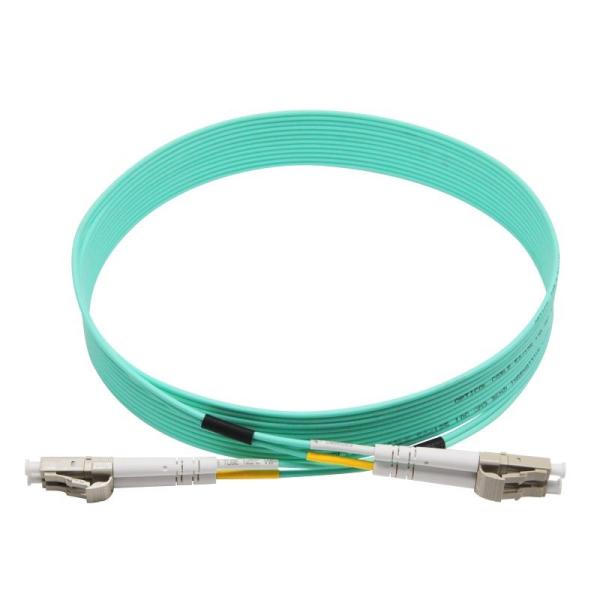

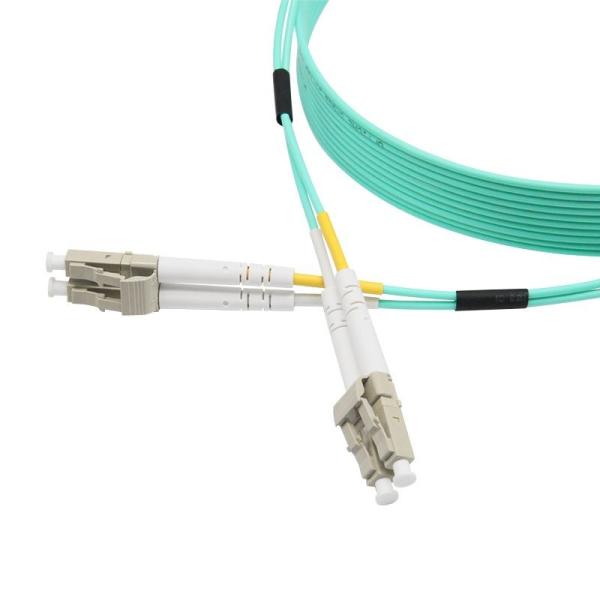

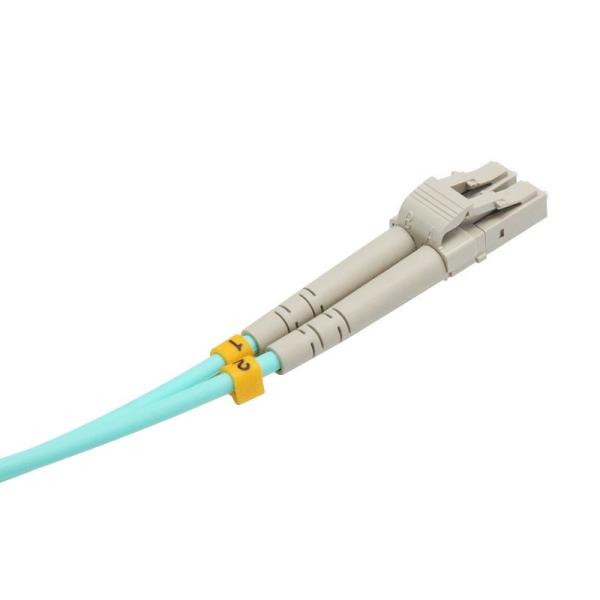

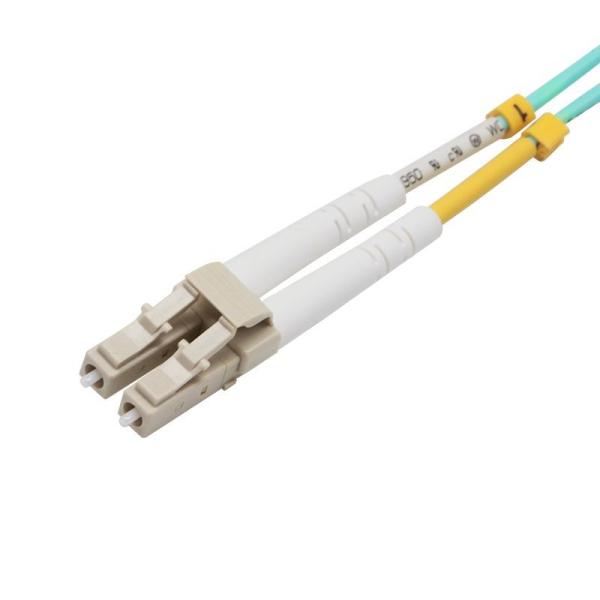

LC - LC Fiber Optic Patch Cord Duplex / Fiber Optic Cable Patch Cord / LC LC Fiber Patch Cord OM3 60/125

Product Description

1. The LC has become the connector of choice for singlemode fibers and is mainly used in fiber optic instruments, SM fiber optic components, and in high speed fiber optic communication links.

2. This high precision, ceramic ferrule connector is equipped with an anti rotation key, reducing fiber endface damage and rotational alignment sensitivity of the fiber.

3. The key is also used for repeatable alignment of fibers in the optimal, minimal loss position. Multimode versions of this connector are also available.

4, Both ends of the optical fiber jumper transceiver module wavelength must be consistent, that is to say the two ends of the optical fibre optical module must be the same wavelength, the simple discrimination method is the light module to the colour line. Under normal circumstances, the short wave optical module uses multimode fiber (orange fiber), the Naga Namihikaru module uses a single mode fiber (yellow fiber) to ensure the accuracy of data transmission.

LC - LC Fiber Optic Patch Cord Duplex / Fiber Optic Cable Patch Cord / LC LC Fiber Patch Cord


5, Optical fiber in use not excessive bending and winding, this will increase the light attenuation in the transmission process.

Technical specifications:

Item Unit LC/SC/FC/ST Fiber Patch Cord
SM MM
Fiber Diameter um 9/125 65.5/125 50/125
Endface Type PC UPC APC PC PC
Insertion Loss db ≤0.2 ≤0.15 ≤0.2 ≤0.1 ≤0.1
Return Loss db ≥45 ≥50 ≥60 - -
Insert-pull Test db ≤0.2 ≤0.2 ≤0.3 ≤0.15 ≤0.15
Interchangeability db ≤0.1 ≤0.1 ≤0.15 ≤0.1 ≤0.1
Temperature Range ℃ -40~+80


Fiber jumper after use must use to protect the optical fiber attachment, dust and oil will damage the fiber coupling.If the fiber optic connector is dirty, you can use a cotton swab dipped in alcohol cleaning, otherwise it will affect the quality of communications.


Features:

---Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH)
---PC, UPC, APC connectors type available
---High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU
---Position A/Position B markings
---Available in 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm sizes

---100% tested on optical performance (Insertion Loss Customer specified length & Return Loss)
---Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request

LC - LC Fiber Optic Patch Cord Duplex / Fiber Optic Cable Patch Cord / LC LC Fiber Patch Cord
Applications:

Gigabit Ethernet;

Active device termination;

Telecommunication networks;

Video;
Multimedia;

Premise installations;

Local area networks;

FTTH FTTX applications;

CATV.
