3m Length Multimode FTTH Optic Fiber Patch Cord
3m Length Multimode FTTH Optic Fiber Patch Cord
Specifications
Brand Name :
QualitY or QY
Model Number :
QPCSCST-MM
Certification :
ISO90012015
Place of Origin :
Dongguan China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
5000pcs per day
Delivery Time :
3-7 working days
Packaging Details :
PE bag or customized package & cartons
Product name :
Fiber jumper for FTTH
Fiber type :
OM2
Connector type :
SC ST LC FC
Material :
PVC/LSZH
Cable diameter :
0.9mm 2.0mm 3.0mm
Fiber count :
Simplex/Duplex
Factory :
Yes
MOQ :
1PCS
Description

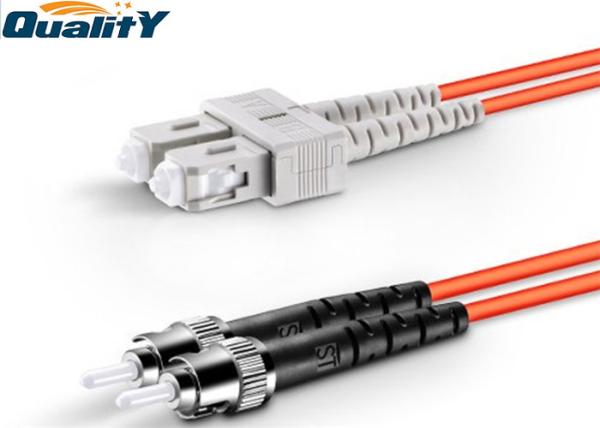

SC duplex ST duplex 3.0mm cable 3m length multimode SC FTTH jumper optic fiber patch cord

Products description

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. QY fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, connectors (APC/UPC polish) are all available.

Specification

Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC FC/APC LC/APC MU/APC
Fiber Singlemode/Multimode, 50/125, 62.5/125 (Multimode) OM2&OM1, 50/125, 10G (Multimode) OM3
Cable Simplex, Duplex
OD Φ3.0mm, Φ2.0mm, Φ0.9mm
Material PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss ≤ 0.1dB (For Singlemode Master), ≤ 0.25dB (For Singlemode Standard, ≤ 0.25dB (For Multimode)

Application

1).Communication rooms

2).FTTH (Fiber to The Home)

3).LAN (Local Area Network)

4).FOS (fiber optic sensor)

5).Fiber Optic Communication System

6).Optical fiber connected and transmitted equipment

7) .Defense combat readiness

Items Descriptions
Optical Fiber Fiber count 1F G.652D/G.657A/MM
Tight buffer fiber Diameter 0.90±0.05mm
Color Yellow
Strength member Material Aramid yarn
Sheath Material PVC/LSZH/TPU
Diameter 3.0±0.10mm
