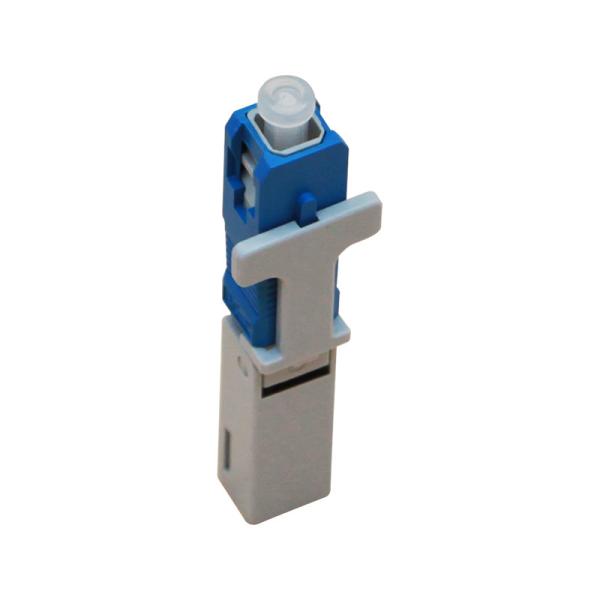

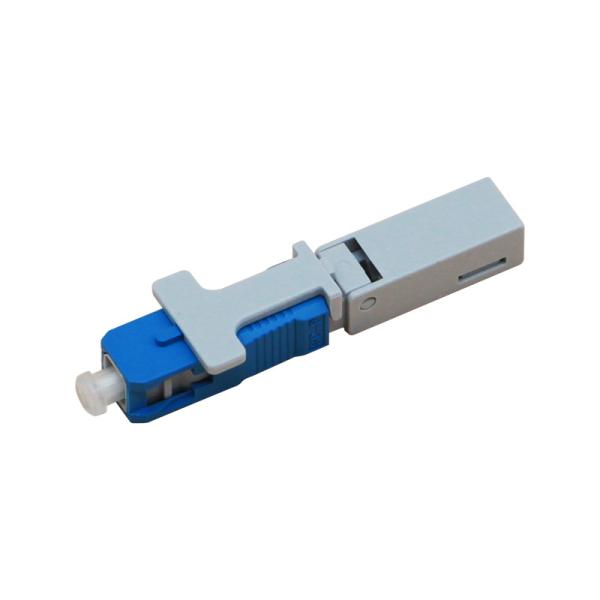

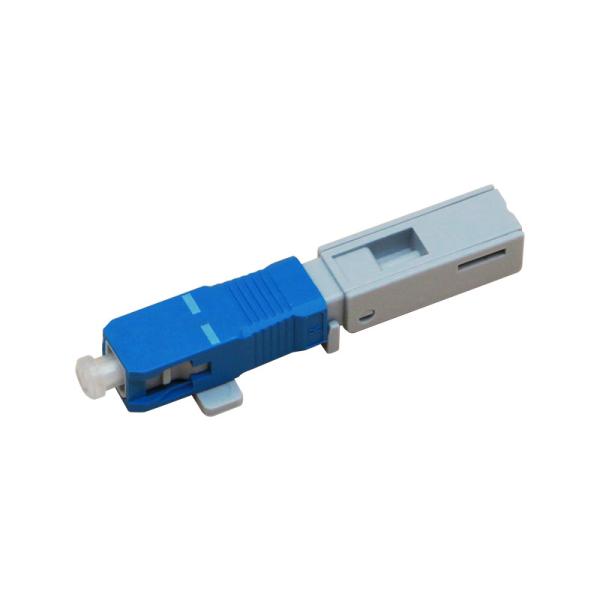

FTTH fiber optic quick connector Single mode SC/UPC fiber optic quick connector
FTTH fiber optic quick connector Single mode SC/UPC fiber optic quick connector
FTTH fiber optic quick connector Single mode SC/UPC fiber optic quick connector
FTTH fiber optic quick connector Single mode SC/UPC fiber optic quick connector
FTTH fiber optic quick connector Single mode SC/UPC fiber optic quick connector
FTTH fiber optic quick connector Single mode SC/UPC fiber optic quick connector
Specifications
Brand Name :
QualitY or QY
Certification :
ISO9001,RoHS,CE
Place of Origin :
Dongguan, China
MOQ :
100pcs for minium order
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
5000 Piece per Week SC UPC Fast Fiber Optic Connector
Delivery Time :
7 working days
Packaging Details :
PE bag or customized package & cartons
Original :
Guangdong, China (Mainland)
Color :
Blue
Insertion loss :
≤0.3dB
Return loss :
≥ 50dB
Fiber type :
SM
Operating temperature :
-25°C ~ +70°C
Repeatability :
≤0.1dB
Description

FTTH fiber optic quick connector Single-mode SC/UPC fiber optic quick connector

FTTH fiber optic quick connector Single mode SC/UPC fiber optic quick connector

Overview

A series of SC field-installable connectors (FIC). These fibre optic connectors are factory terminated and polished which allow for fast and reliable connections. The superior quality fibre connectors require no epoxy polishing or crimping making them ideal for applications where time is of the essence. The single-mode simplex connectors in this range have 9/125 fibre size and come in both APC and PC polish options. The connectors also feature a window that enables testing with a visual fault locator.

Features

  • ROHS, CE compliant
  • Reduces assembly time and simplifies training
  • Easy-to-install adapters and connectors
  • Compatible with standard SC adapters
  • Helps minimize transmission problems
  • Optimizes optical contact

Application

  • Teletechnocal Networks
  • CATV Networks
  • LAN & WAN
  • Measuring Equipment
  • Broadband
  • FTTH

Specification

Item Name

Unit

SC/UPC Field Installable Connector
Grade S (Standard) Grade P (Premium)
Fiber Type um 9/125 9/125 (Corning)
Polishing --- UPC
Insertion Loss dB ≤0.5 ≤0.3
Return Loss dB ≥45 ≥50
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Reusability times ≥5
Tensile Strength N ≥50
